Precision Components

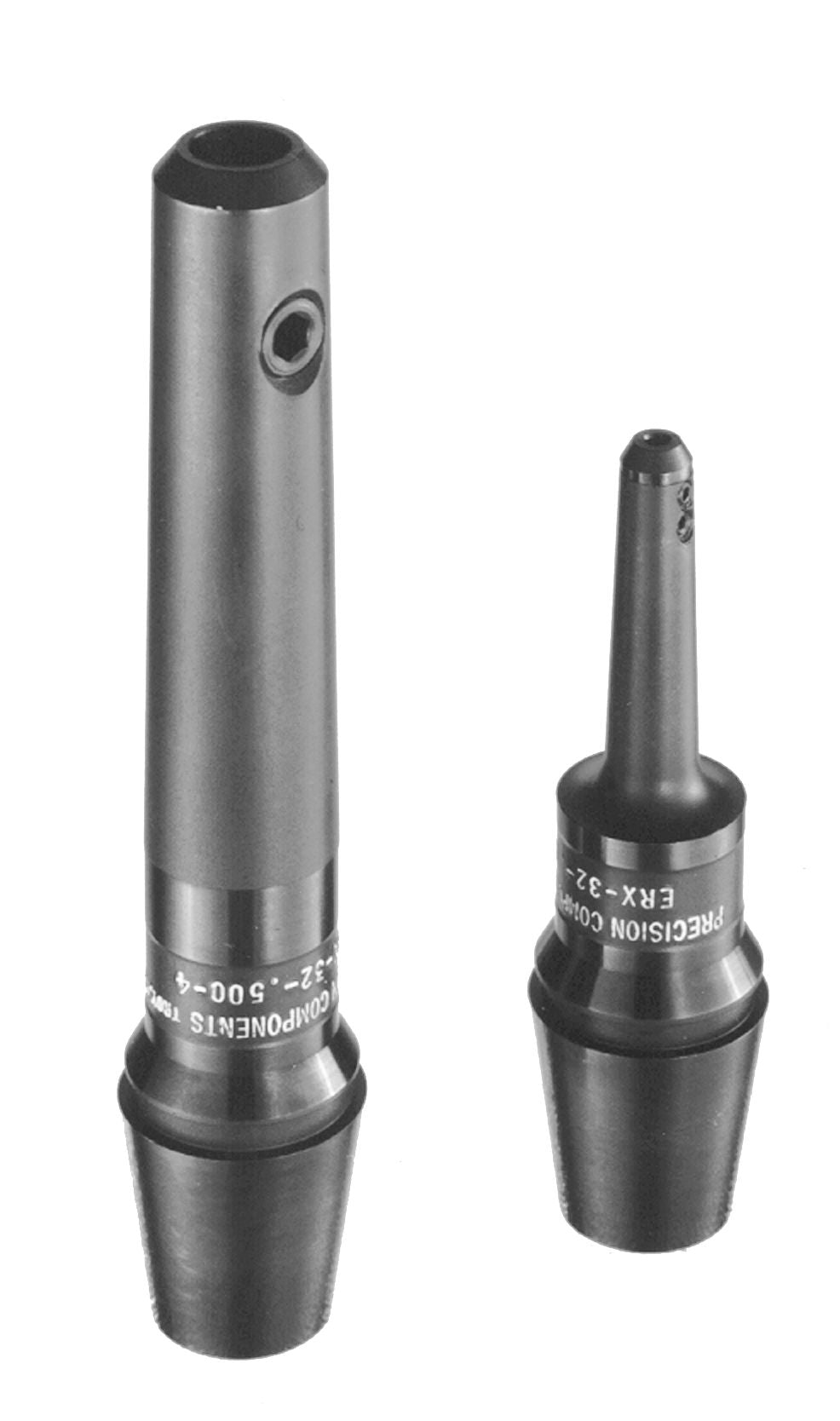

#32 Taper ER Solid Extensions

#32 Taper ER Solid Extensions

#32 Taper ER Solid Extensions extra image

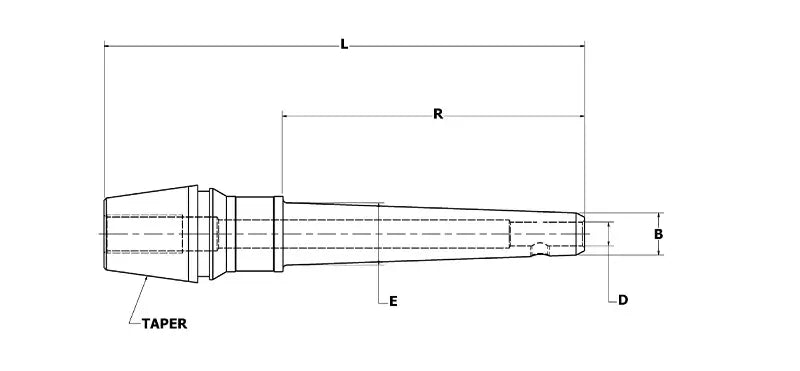

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "R"

ERX-32-.125-2

$254.00 USD
$254.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components ER Solid Extensions eliminate stack-up and run-out. THe solid design helps decrease cycle time and deflection problems with unmatched, reliable, and consistent results. They are available in 2” and 4” projections.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

CATALOG NUMBER D L R TAPER B E
ERX-32-.125-2 .125 4.38 2.00 #32 .38 .51
ERX-32-.125-4 .125 6.38 4.00 #32 .38 .65
ERX-32-.187-2 .187 4.38 2.00 #32 .44 .57
ERX-32-.187-4 .187 6.38 4.00 #32 .44 .71
ERX-32-.250-2 .250 4.38 2.00 #32 .50 .63
ERX-32-.250-4 .250 6.38 4.00 #32 .50 .77
ERX-32-.312-2 .312 4.38 2.00 #32 .56 .69
ERX-32-.312-4 .312 6.38 4.00 #32 .56 .83
ERX-32-.375-2 .375 4.38 2.00 #32 .75 .88
ERX-32-.375-4 .375 6.38 4.00 #32 .75 1.00
ERX-32-.437-2 .437 4.38 2.00 #32 .81 .94
ERX-32-.437-4 .437 6.38 4.00 #32 .81 1.00
ERX-32-.500-2 .500 4.38 2.00 #32 .88 1.00
ERX-32-.500-4 .500 6.38 4.00 #32 .88 1.00
