Precision Components

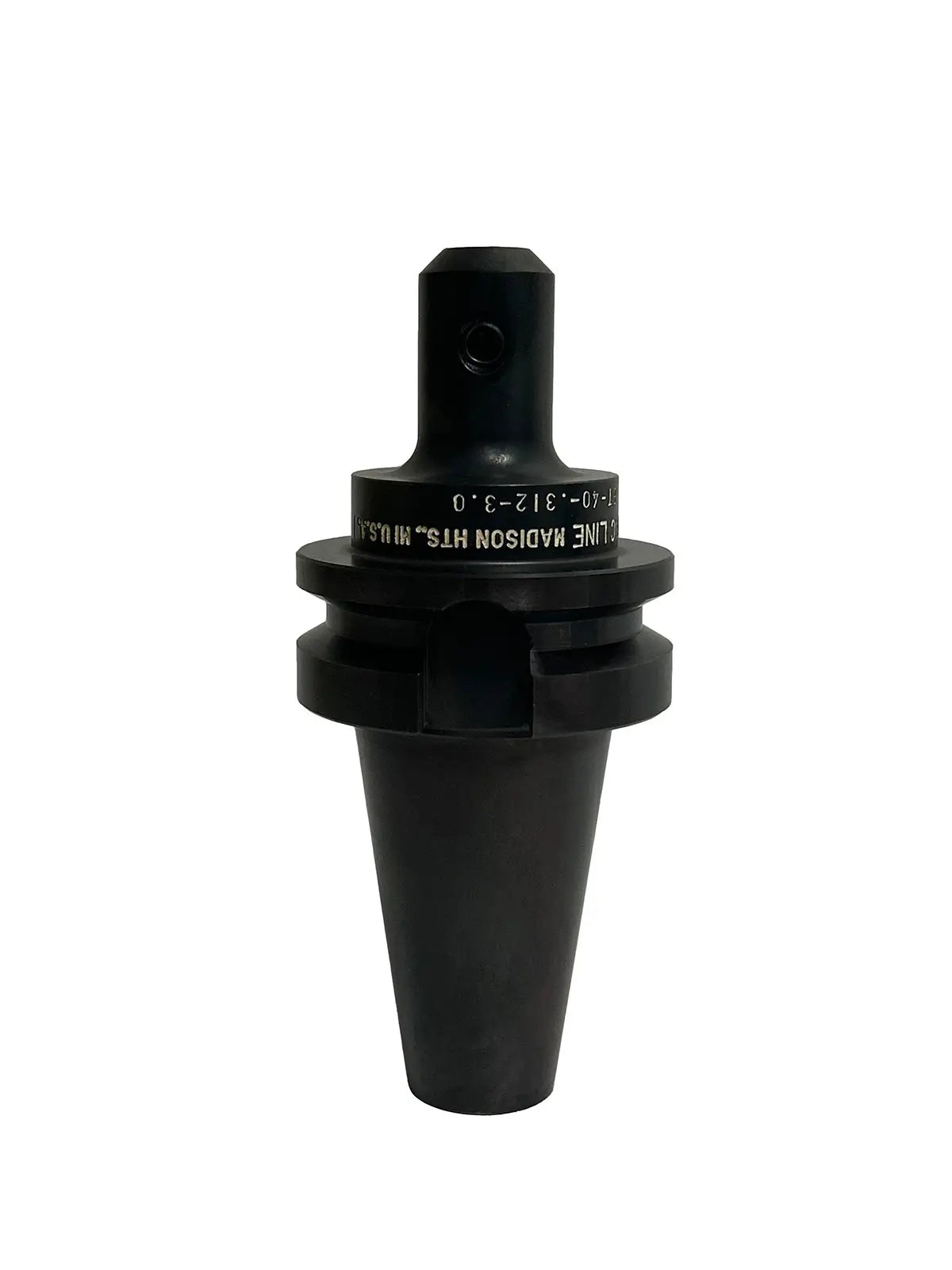

BT-40 Standard Reach

BT-40 Standard Reach

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "R"
Dimension "B"

BT-40-.125-2.5

$175.00 USD
$175.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components is proud to offer the highest quality in standard tool holders.

  • Din 69871 DV Form B Available
  • All hardened to R/C 58-62
  • Guaranteed Concentricity 0.0002
  • Coolant through
  • 100% guaranteed
  • American Made
View full details

Specifications

CATALOG NUMBER D L R TAPER B S.S.
BT-40-.125-2.5 .125 5.08 2.50 BT-40 .75 #6-32 x 1/4
BT-40-.187-2.5 .187 5.08 2.50 BT-40 .75 #10-32 x 1/4
BT-40-.250-2.5 .250 5.08 2.50 BT-40 .81 1/4-28 x 1/4
BT-40-.312-3.0 .312 5.08 3.00 BT-40 .88 5/16-24 x 1/4
BT-40-.375-3.0 .375 5.58 3.00 BT-40 1.00 3/8-24 x 5/16
BT-40-.437-3.0 .437 5.58 3.00 BT-40 1.38 3/8-24 x 5/16
BT-40-.500-3.0 .500 5.58 3.00 BT-40 1.38 7/16-20 x 3/8
BT-40-.625-3.0 .625 5.58 3.00 BT-40 1.63 9/16-18 x 1/2
BT-40-.750-3.5 .750 6.08 3.50 BT-40 1.75 5/8-18 x 1/2
BT-40-.875-3.5 .875 6.08 3.50 BT-40 2.00 5/8-18 x 1/2
BT-40-1.000-4.0 1.000 6.58 4.00 BT-40 2.38 3/4-16 x 11/16
BT-40-1.250-4.5 1.250 7.08 4.50 BT-40 2.50 3/4-16 x 11/16
