Precision Components

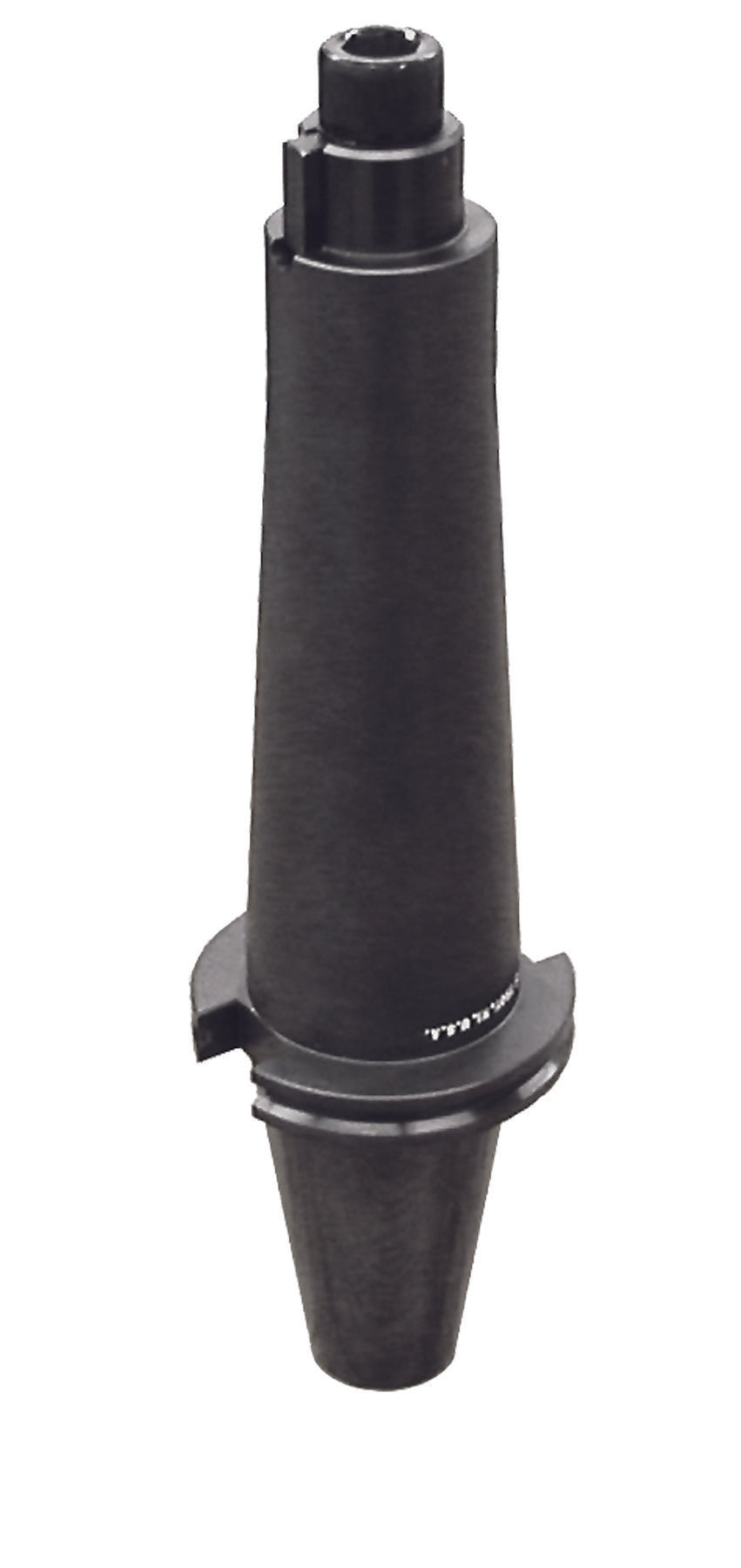

BT-40 Stub Arbor

BT-40 Stub Arbor

BT-40 Stub Arbor extra image

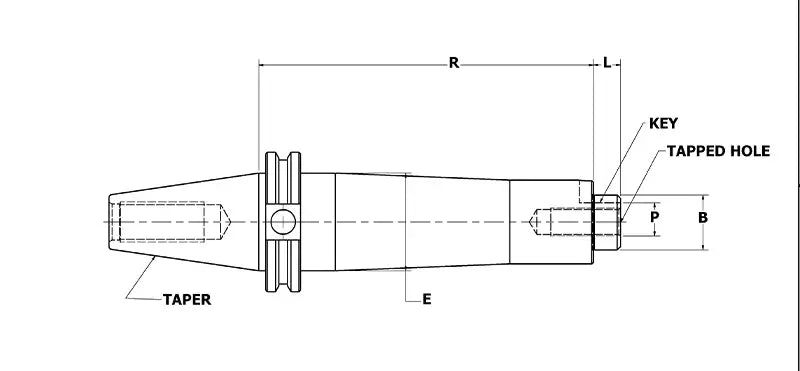

Select the desired dimension based on the technical drawing.

Dimension "P"
Dimension "R"

BT-40-.750-SA-6

$317.00 USD
$317.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components Stub Arbors come in four pilot sizes and a multitude of lengths. They give you maximum rigidity in extended lengths. By being made in a one piece construction they virtually eliminate run-out and increase rigidity.

  • Hardened
  • Precision Ground
  • American Made

KEY SUPPLIED

View full details

Specifications

CATALOG NUMBER TAPER R P KEY L B E TAPPED HOLE
BT-40-.750-SA-6 BT-40 6.00 .750 .187 .375 1.25 1.75 3/8-24
BT-40-.750-SA-8 BT-40 8.00 .750 .187 .375 1.25 1.75 3/8-24
BT-40-1.000-SA-6 BT-40 6.00 1.000 .250 .485 1.50 1.75 1/2-20
BT-40-1.000-SA-8 BT-40 8.00 1.000 .250 .485 1.50 1.75 1/2-20
BT-40-1.250-SA-6 BT-40 6.00 1.250 .312 .715 1.75 1.75 5/8-18
BT-40-1.250-SA-8 BT-40 8.00 1.250 .312 .715 1.75 1.75 5/8-18
BT-40-1.500-SA-6 BT-40 6.00 1.500 .375 .975 2.12 2.12 3/4-16
BT-40-1.500-SA-8 BT-40 8.00 1.500 .375 .975 2.12 2.12 3/4-16
