Precision Components

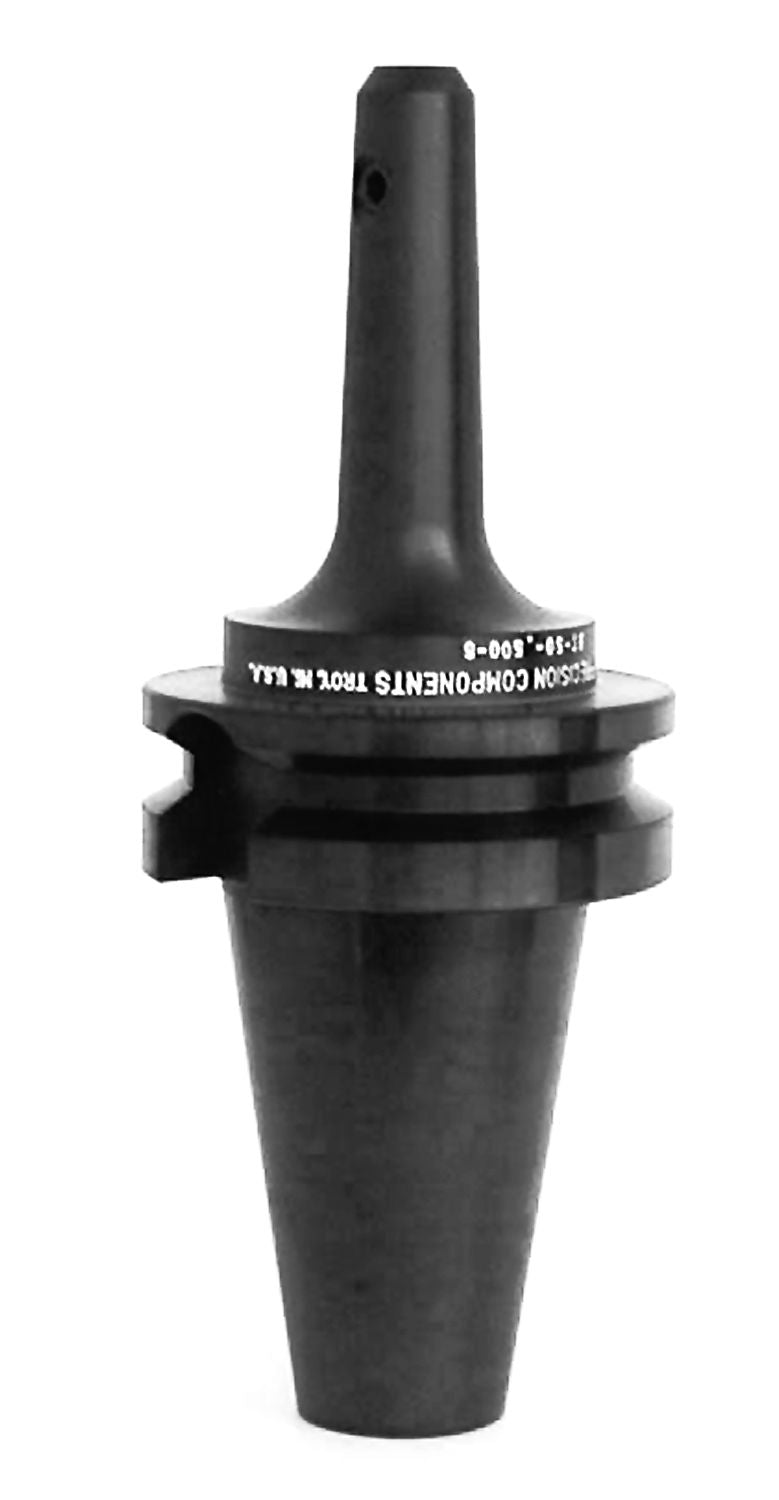

BT-50 End Mill Extension

BT-50 End Mill Extension

BT-50 End Mill Extension extra image

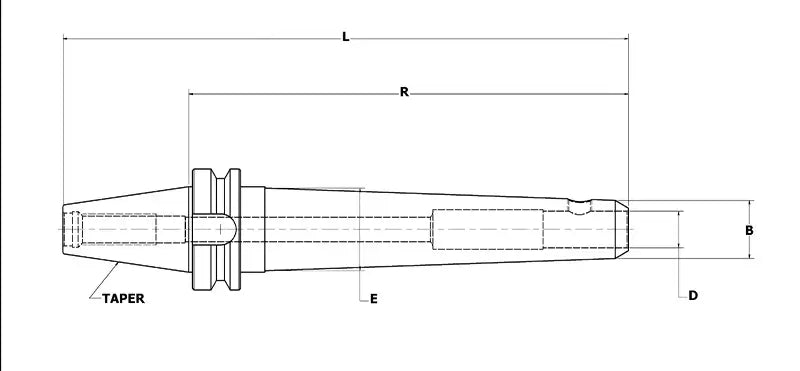

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "R"

BT-50-.250-6

$456.00 USD
$456.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components’ BT-50 Flange Tooling is designed to give maximum rigidity at extended lengths. They are available in 6”, 9”, 12” and 15” projections.

  • Hardened
  • Precision Ground
  • American Made

Available in Dual Contact - (DC)

View full details

Specifications

Catalog Number D L R TAPER B E S.S.
BT-50-.250-6 .250 10.00 6.00 BT-50 .50 .78 #10-32 X 1/8
BT-50-.250-9 .250 13.00 9.00 BT-50 .50 .99 #10-32 X 1/8
BT-50-.250-12 .250 16.00 12.00 BT-50 .50 1.20 #10-32 X 1/8
BT-50-.250-15 .250 19.00 15.00 BT-50 .50 1.57 #10-32 X 1/8
BT-50-.375-6 .375 10.00 6.00 BT-50 .75 1.02 5/16-24 X 5/32
BT-50-.375-9 .375 13.00 9.00 BT-50 .75 1.23 5/16-24 X 5/32
BT-50-.375-12 .375 16.00 12.00 BT-50 .75 1.44 5/16-24 X 5/32
BT-50-.375-15 .375 19.00 15.00 BT-50 .75 1.65 5/16-24 X 5/32
BT-50-.437-6 .437 10.00 6.00 BT-50 .82 1.10 3/8-24 X 3/16
BT-50-.500-6 .500 10.00 6.00 BT-50 .88 1.15 7/16-20 X 7/32
BT-50-.500-9 .500 13.00 9.00 BT-50 .88 1.36 7/16-20 X 7/32
BT-50-.500-12 .500 16.00 12.00 BT-50 .88 1.57 7/16-20 X 7/32
BT-50-.500-15 .500 19.00 15.00 BT-50 .88 1.78 7/16-20 X 7/32
BT-50-.625-6 .625 10.00 6.00 BT-50 1.06 1.33 1/2-20 X 1/4
BT-50-.625-9 .625 13.00 9.00 BT-50 1.06 1.54 1/2-20 X 1/4
BT-50-.625-12 .625 16.00 12.00 BT-50 1.06 1.75 1/2-20 X 1/4
BT-50-.625-15 .625 19.00 15.00 BT-50 1.06 1.96 1/2-20 X 1/4
BT-50-.750-6 .750 10.00 6.00 BT-50 1.19 1.46 1/2-20 X 1/4
BT-50-.750-9 .750 13.00 9.00 BT-50 1.19 1.67 1/2-20 X 1/4
BT-50-.750-12 .750 16.00 12.00 BT-50 1.19 1.88 1/2-20 X 1/4
BT-50-.750-15 .750 19.00 15.00 BT-50 1.19 2.09 1/2-20 X 1/4
BT-50-.875-6 .875 10.00 6.00 BT-50 1.43 1.58 5/8-18 X 5/16
BT-50-.875-9 .875 13.00 9.00 BT-50 1.43 1.79 5/8-18 X 5/16
BT-50-.875-12 .875 16.00 12.00 BT-50 1.43 2.00 5/8-18 X 5/16
BT-50-.875-15 .875 19.00 15.00 BT-50 1.43 2.21 5/8-18 X 5/16
BT-50-1.000-6 1.000 10.00 6.00 BT-50 1.62 1.89 5/8-18 X 5/16
BT-50-1.000-9 1.000 13.00 9.00 BT-50 1.62 2.09 5/8-18 X 5/16
BT-50-1.000-12 1.000 16.00 12.00 BT-50 1.62 2.30 5/8-18 X 5/16
BT-50-1.000-15 1.000 19.00 15.00 BT-50 1.62 2.51 5/8-18 X 5/16
BT-50-1.250-6 1.250 10.00 6.00 BT-50 1.88 2.15 5/8-18 X 5/16
BT-50-1.250-9 1.250 13.00 9.00 BT-50 1.88 2.35 5/8-18 X 5/16
BT-50-1.250-12 1.250 16.00 12.00 BT-50 1.88 2.56 5/8-18 X 5/16
BT-50-1.250-15 1.250 19.00 15.00 BT-50 1.88 2.75 5/8-18 X 5/16
BT-50-1.500-6 1.500 10.00 6.00 BT-50 2.25 2.51 3/4-16 X 3/8
BT-50-1.500-9 1.500 13.00 9.00 BT-50 2.25 2.75 3/4-16 X 3/8
BT-50-1.500-12 1.500 16.00 12.00 BT-50 2.25 2.92 3/4-16 X 3/8
BT-50-1.500-15 1.500 19.00 15.00 BT-50 2.25 3.13 3/4-16 X 3/8
BT-50-2.000-6 2.000 10.00 6.00 BT-50 3.19 3.42 1-14 X 3/4
BT-50-2.000-9 2.000 13.00 9.00 BT-50 3.19 3.62 1-14 X 3/4
BT-50-2.000-12 2.000 16.00 12.00 BT-50 3.19 3.82 1-14 X 3/4
BT-50-2.000-15 2.000 19.00 15.00 BT-50 3.19 3.82 1-14 X 3/4
