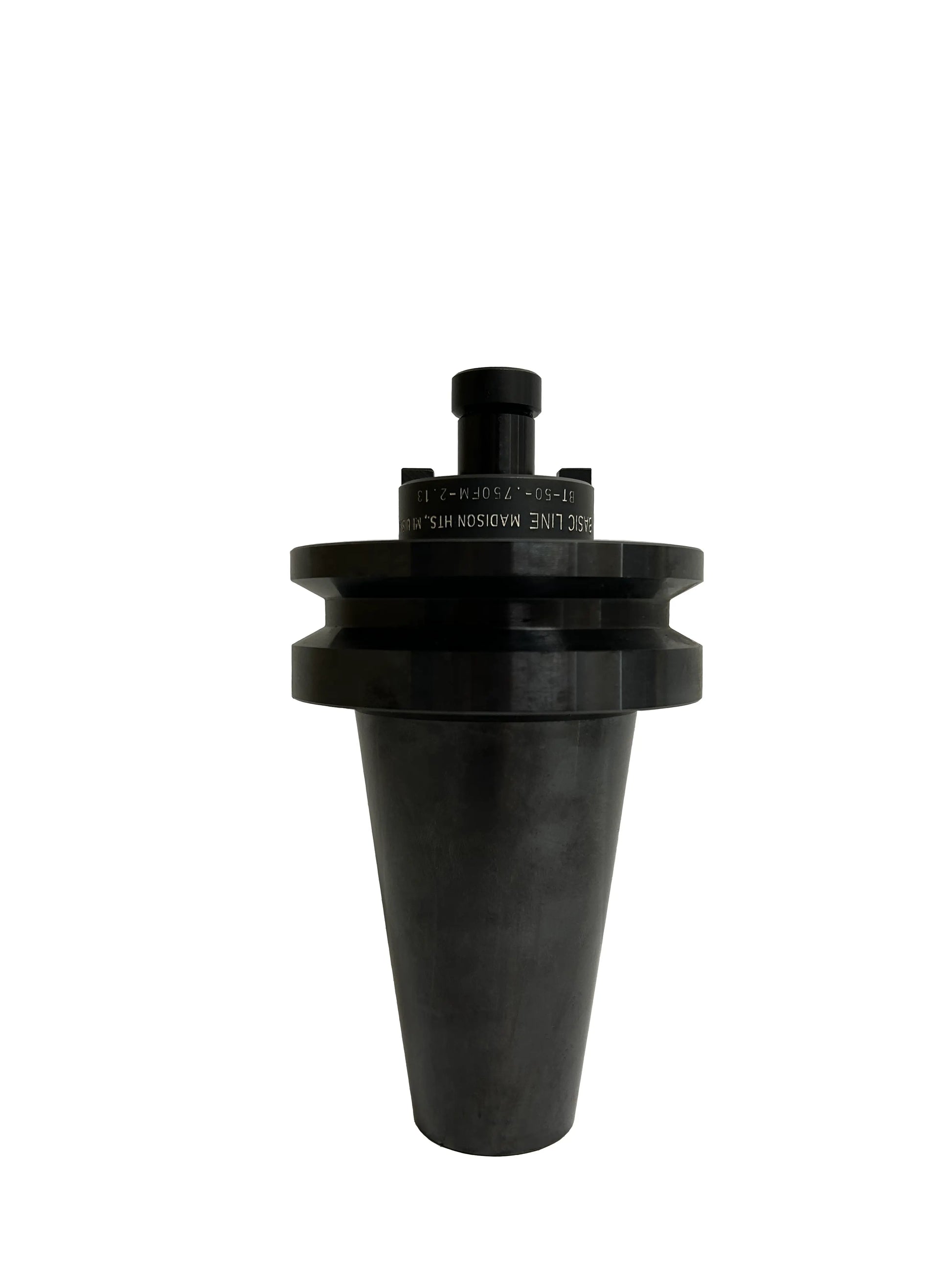

BT-50 Face Mill Standard Reach
BT-50 Face Mill Standard Reach
Select the desired dimension based on the technical drawing.
SKU:BT-50-.750FM-2.00
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Unit price
per
Call for Availability
View full details
1-800-525-1373
Precision Components is proud to offer the highest quality in standard tool holders.
- All hardened to R/C 58-62
- Guaranteed Concentricity 0.0002
- 100% guaranteed
- American Made
Specifications
| CATALOG NUMBER | D | K | L | R | TAPER | B | THREAD | C |
|---|---|---|---|---|---|---|---|---|
| BT-50-.750FM-1.75 | .750 | .312 | 6.45 | 1.75 | BT-50 | 2.00 | 3/8-24 | .69 |
| BT-50-1.000FM-2.00 | 1.000 | .375 | 3.70 | 2.00 | BT-50 | 2.38 | 1/2-20 | .69 |
| BT-50-1.250FM-2.13 | 1.250 | .500 | 6.83 | 2.13 | BT-50 | 2.88 | 5/8-18 | .69 |
| BT-50-1.500FM-3.00 | 1.500 | .625 | 7.45 | 3.00 | BT-50 | 3.75 | 3/4-16 | .94 |
| BT-50-2.000FM-3.00 | 2.000 | .750 | 7.95 | 3.01 | BT-50 | 4.38 | 1-14 | .94 |
| BT-50-2.500FM-3.00 | 2.500 | 1.000 | 8.13 | 3.02 | BT-50 | 4.88 | 5/8-18-4"BHC | 1.12 |
