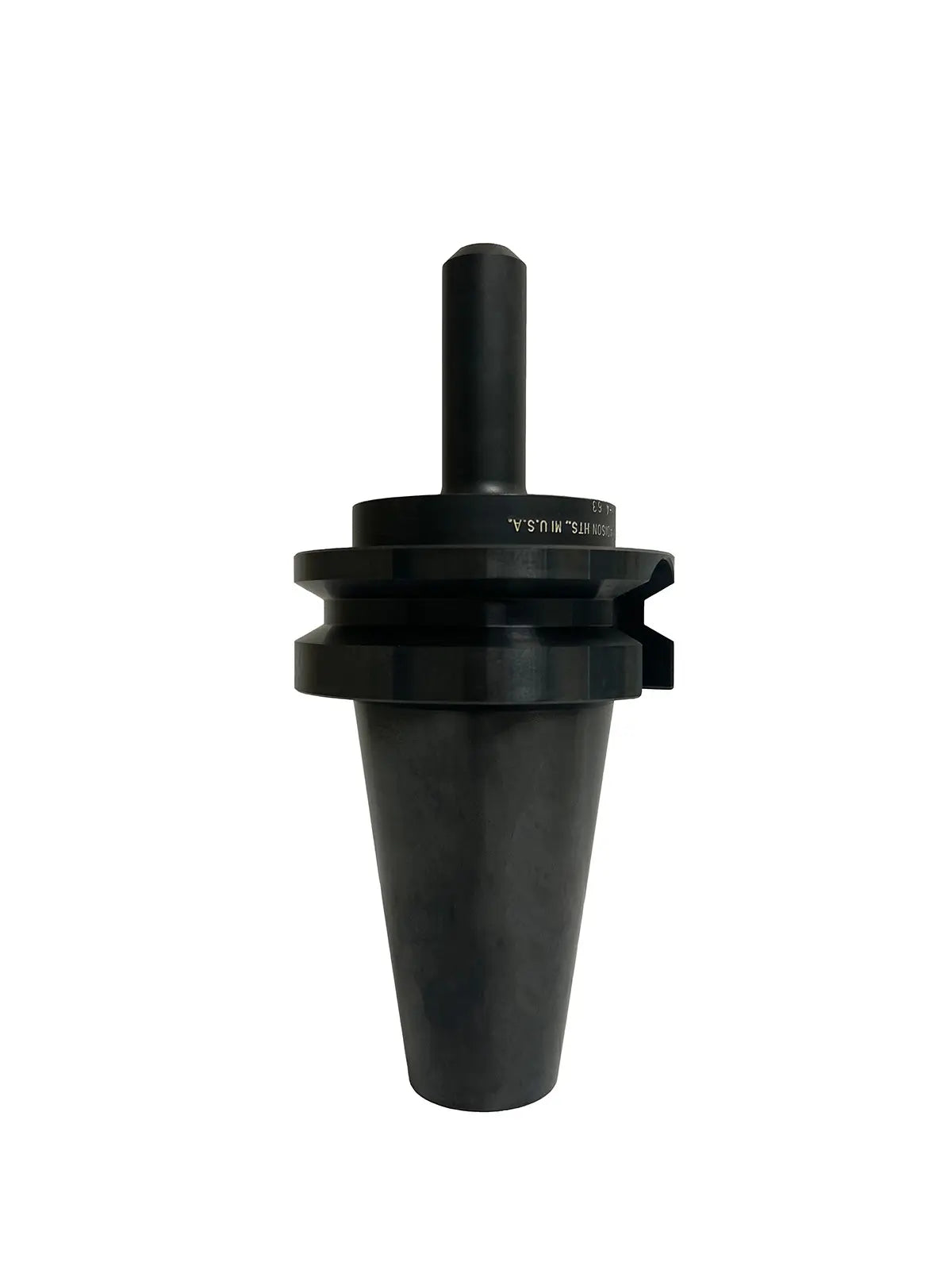

BT-50 Standard Reach
BT-50 Standard Reach
Select the desired dimension based on the technical drawing.
SKU:BT-50-.125-4.63
Regular price
$205.00 USD
Regular price
Sale price
$205.00 USD
Unit price
per
Call for Availability
View full details
1-800-525-1373
Precision Components is proud to offer the highest quality in standard tool holders.
- Din 69871 DV Form B Available
- All hardened to R/C 58-62
- Guaranteed Concentricity 0.0002
- Coolant through
- 100% guaranteed
- American Made
Specifications
| CATALOG NUMBER | D | L | R | TAPER | B | S.S. |
|---|---|---|---|---|---|---|
| BT-50-.125-4.63 | .125 | 8.64 | 4.63 | BT-50 | .75 | #6-32 x 1/4 |
| BT-50-.187-4.63 | .187 | 8.64 | 4.63 | BT-50 | .75 | #10-32 x 1/4 |
| BT-50-.250-4.63 | .250 | 8.64 | 4.63 | BT-50 | .81 | 1/4-28 x 1/4 |
| BT-50-.312-4.63 | .312 | 8.64 | 4.63 | BT-50 | .88 | 5/16-24 x 1/4 |
| BT-50-.375-4.63 | .375 | 8.64 | 4.63 | BT-50 | 1.00 | 3/8-24 x 5/16 |
| BT-50-.437-4.63 | .437 | 8.64 | 4.63 | BT-50 | 1.38 | 3/8-24 x 5/16 |
| CAT-50-.500-4.63 | .500 | 8.64 | 4.63 | BT-50 | 1.38 | 7/16-20 x 3/8 |
| BT-50-.625-4.63 | .625 | 8.64 | 4.63 | BT-50 | 1.63 | 9/16-18 x 1/2 |
| BT-50-.750-4.63 | .750 | 8.64 | 4.63 | BT-50 | 1.88 | 5/8-18 x 1/2 |
| BT-50-.875-4.63 | .875 | 8.64 | 4.63 | BT-50 | 2.00 | 5/8-18 x 1/2 |
| BT-50-1.000-4.63 | 1.000 | 8.64 | 4.63 | BT-50 | 2.38 | 3/4-16 x 11/16 |
| BT-50-1.250-4.63 | 1.250 | 8.64 | 4.63 | BT-50 | 2.50 | 3/4-16 x 11/16 |
| BT-50-1.500-5.00 | 1.500 | 9.01 | 5.00 | BT-50 | 3.00 | 3/4-16 x 11/16 |
| BT-50-2.000-5.88 | 2.000 | 9.89 | 5.88 | BT-50 | 3.75 | 1-14 x 7/8 |
