CAT-40 End Mill Extension

CAT-40 End Mill Extension

CAT-40 End Mill Extension extra image

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "R"

CAT-40-.125-4

$267.00 USD
$267.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

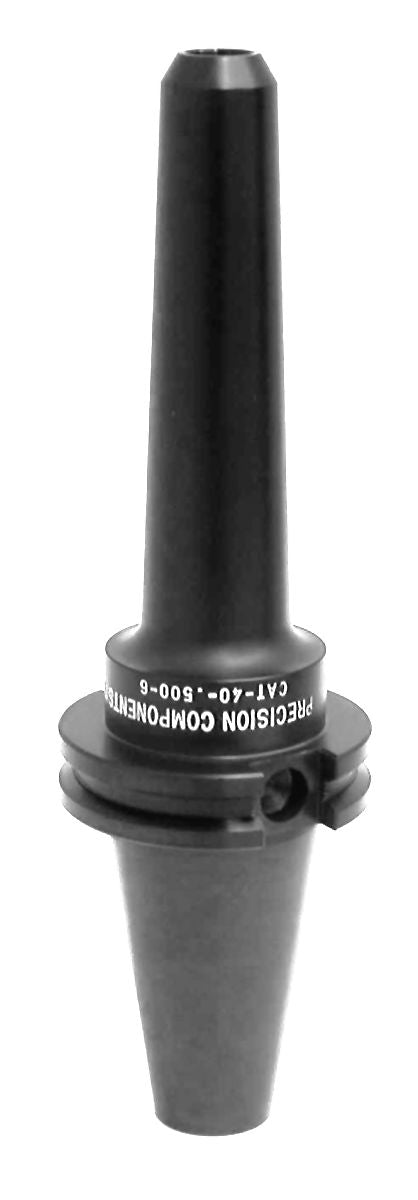

Precision Components CAT-40 Flange Tooling is designed to give maximum rigidity at extended lengths. They are available in 4", 6" and 9" projections.

Hardened

Precision Ground

American Made

Available in Dual Contact - (DC)

View full details

Specifications

Catalog Number D L R TAPER B E S.S.
CAT-40-.125-4 .125 6.68 4.00 CAT-40 .38 .56 #6-32 X 3/32
CAT-40-.125-6 .125 8.68 6.00 CAT-40 .38 .70 #6-32 X 3/32
CAT-40-.125-9 .125 11.68 9.00 CAT-40 .38 .91 #6-32 X 3/32
