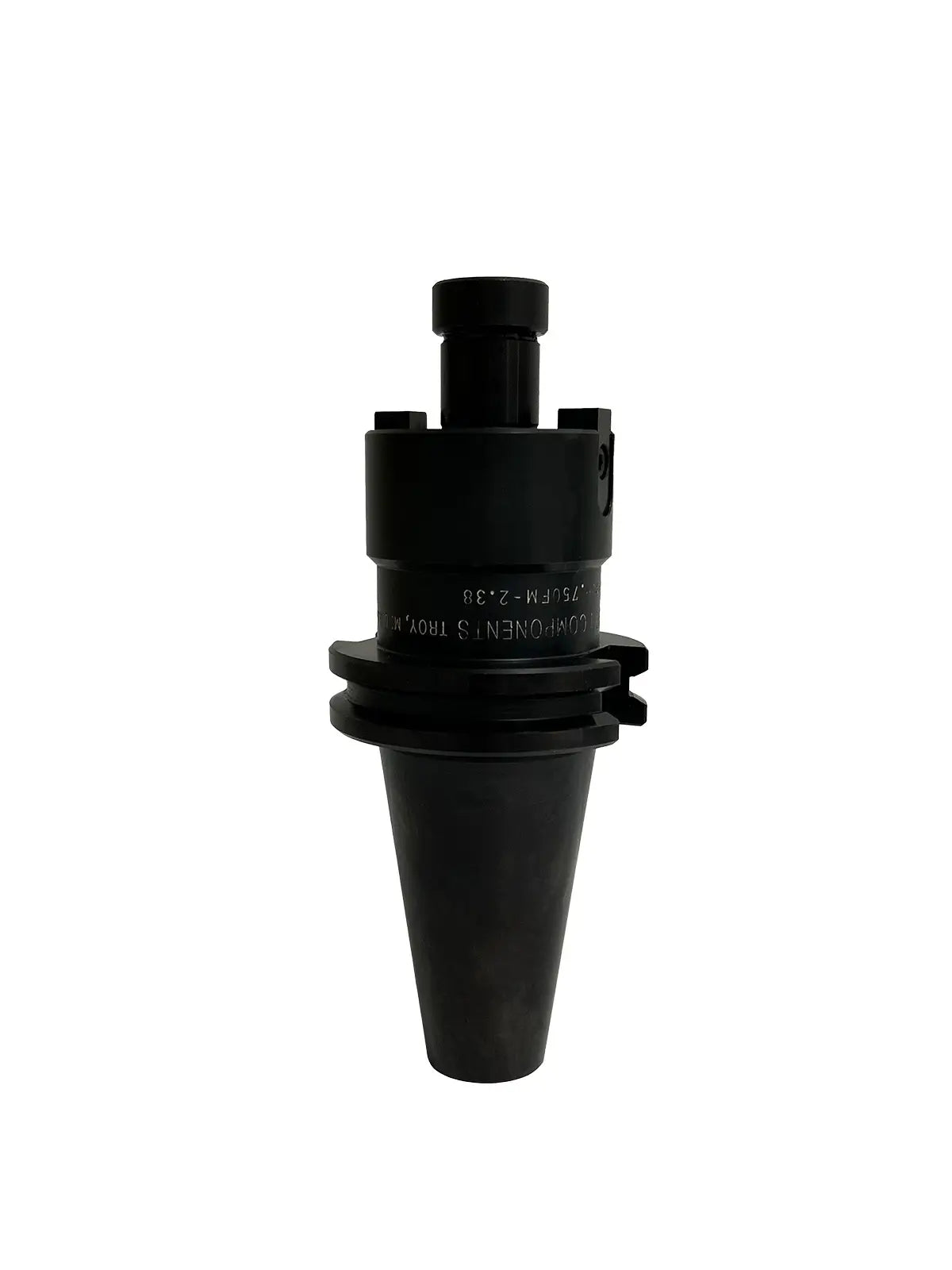

CAT-40 Face Mill Standard Reach

Select the desired dimension based on the technical drawing.

Dimension "P" 0.750Variant sold out or unavailable 1.000Variant sold out or unavailable 1.250Variant sold out or unavailable 1.500Variant sold out or unavailable

Dimension "R" 2.38Variant sold out or unavailable 2.63Variant sold out or unavailable 3Variant sold out or unavailable

Dimension "B" 2.0Variant sold out or unavailable 2.38Variant sold out or unavailable 2.4Variant sold out or unavailable 3.75Variant sold out or unavailable

SKU:CAT-40-.750FM-2.38

Regular price $195.00 USD

Regular price Sale price $195.00 USD

Unit price / per

Sale Sold out

Call for Availability

1-800-525-1373

Precision Components is proud to offer the highest quality in standard tool holders.

All hardened to R/C 58-62
Guaranteed Concentricity 0.0002
100% guaranteed
American Made

Link

View full details

Specifications

CATALOG NUMBER	D	K	L	R	TAPER	B	THREAD	C
CAT-40-.750FM-2.38	.750	.312	5.75	2.38	CAT-40	2.00	3/8-24	.69
CAT-40-1.000FM-2.63	1.000	.375	6.00	2.63	CAT-40	2.38	1/2-20	.69
CAT-40-1.250FM-2.63	1.250	.500	6.00	2.63	CAT-40	2.88	5/8-18	.69
CAT-40-1.500FM-3.00	1.500	.625	6.62	3.00	CAT-40	3.75	3/4-16	.94

Long Reach & Milling Tooling Specialists

First in product diversity, innovation and inventory when it comes to Milling Tooling.
