Precision Components

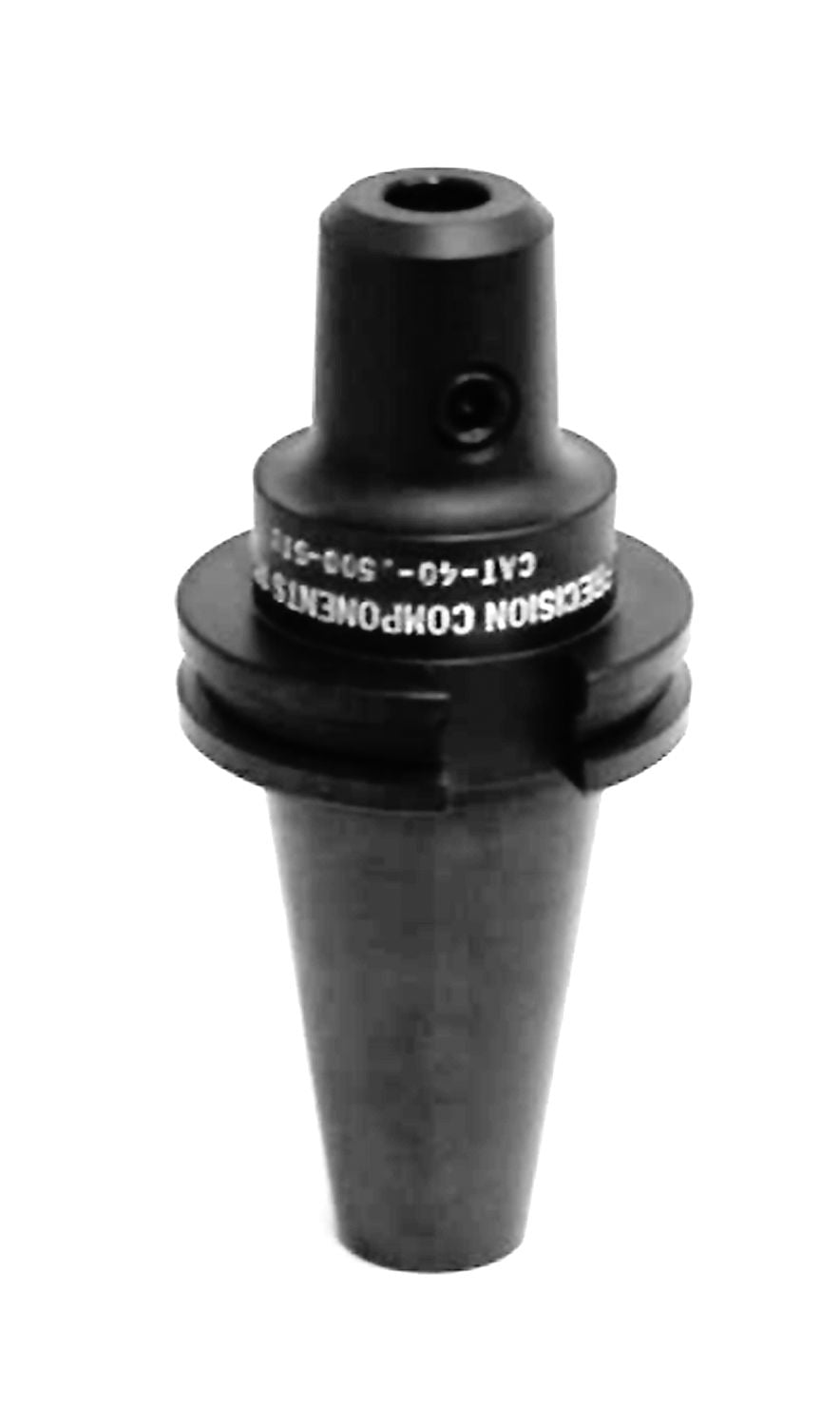

CAT-40 STD Balanced to 12,000 RPM

CAT-40 STD Balanced to 12,000 RPM

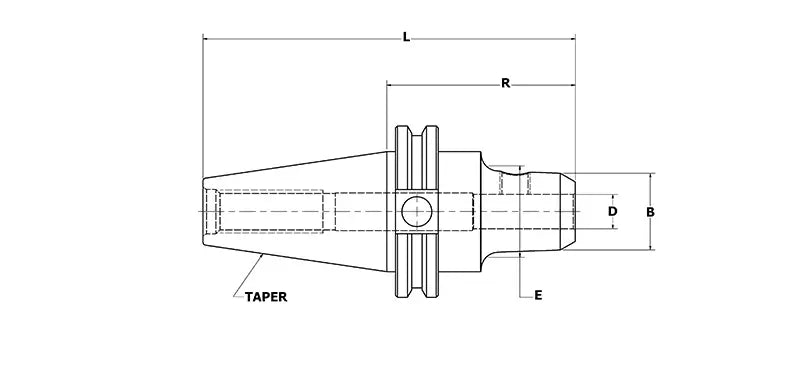

CAT-40 STD Balanced to 12,000 RPM extra image

Select the desired dimension based on the technical drawing.

Dimension "D"

CAT-40-.1250-STD

$188.00 USD
$188.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components “STANDARDS” are designed to replace the old standard length tooling. All holders are high-speed balanced, have coolant thru, and are slim in design, which cause less interference and better coolant contact at cutting edge. All fraction sizes are in stock, eliminating bulky drill chunks, collets, and special tooling.

  • Hardened
  • Precision Ground
  • American Made



View full details

Specifications

Catalog Number D R TAPER B L S.S.
BT-30-.250-STUBBY .250 1.375 BT-30 1.25 3.28 #10-32 X 1/8
BT-30-.312-STUBBY .312 1.375 BT-30 1.25 3.28 1/4-28 X 1/8
BT-30-.375-STUBBY .375 1.375 BT-30 1.25 3.28 5/16 - 24 X 5/32
BT-30-.500-STUBBY .500 1.375 BT-30 1.25 3.28 7/16 - 20 X 7/32
BT-30-.625-STUBBY .625 1.375 BT-30 1.25 3.28 1/2-20 X 1/4
BT-30-.750-STUBBY .750 1.375 BT-30 1.25 3.28 1/2-20 X 1/4
Catalog Number D R TAPER B L S.S.
BT-40-.250-STUBBY .250 1.690 BT-40 1.75 4.26 #10-32 X 1/8
BT-40-.375-STUBBY .375 1.690 BT-40 1.75 4.26 5/16-24 X 5/32
BT-40-.500-STUBBY .500 1.690 BT-40 1.75 4.26 7/16-20 X 7/32
BT-40-.625-STUBBY .625 1.690 BT-40 1.75 4.26 1/2-20 X 1/4
BT-40-.750-STUBBY .750 1.690 BT-40 1.75 4.26 1/2-20 X 1/4
BT-40-.875-STUBBY .875 1.690 BT-40 1.75 4.26 5/8-18 X 5/16
BT-40-1.000-STUBBY 1.000 1.690 BT-40 1.75 4.26 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
CAT-40-.250-STUBBY .250 1.375 CAT-40 1.75 4.06 #10-32 X 1/8
CAT-40-.375-STUBBY .375 1.375 CAT-40 1.75 4.06 5/16-24 X 5/32
CAT-40-.500-STUBBY .500 1.375 CAT-40 1.75 4.06 7/16-20 X 7/32
CAT-40-.625-STUBBY .625 1.375 CAT-40 1.75 4.06 1/2-20 X 1/4
CAT-40-.750-STUBBY .750 1.375 CAT-40 1.75 4.06 1/2-20 X 1/4
CAT-40-.875-STUBBY .875 1.375 CAT-40 1.75 4.06 5/8-18 X 5/16
CAT-40-1.000-STUBBY 1.000 1.375 CAT-40 1.75 4.06 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
BT-45-.250-STUBBY .250 1.920 BT-45 2.25 5.18 #10-32 X 1/8
BT-45-.375-STUBBY .375 1.920 BT-45 2.25 5.18 5/16-24 X 5/32
BT-45-.500-STUBBY .500 1.920 BT-45 2.25 5.18 7/16-20 X 7/32
BT-45-.625-STUBBY .625 1.920 BT-45 2.25 5.18 1/2-20 X 1/4
BT-45-.750-STUBBY .750 1.920 BT-45 2.25 5.18 1/2-20 X 1/4
BT-45-.875-STUBBY .875 1.920 BT-45 2.25 5.18 5/8-18 X 5/16
BT-45-1.000-STUBBY 1.000 1.920 BT-45 2.25 5.18 5/8-18 X 5/16
BT-45-1.250-STUBBY 1.250 1.920 BT-45 2.25 5.18 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
CAT-45-.250-STUBBY .250 1.375 CAT-45 2.25 4.62 #10-32 X 1/8
CAT-45-.375-STUBBY .375 1.375 CAT-45 2.25 4.62 5/16-24 X 5/32
CAT-45-.500-STUBBY .500 1.375 CAT-45 2.25 4.62 7/16-20 X 7/32
CAT-45-.625-STUBBY .625 1.375 CAT-45 2.25 4.62 1/2-20 X 1/4
CAT-45-.750-STUBBY .750 1.375 CAT-45 2.25 4.62 1/2-20 X 1/4
CAT-45-.875-STUBBY .875 1.375 CAT-45 2.25 4.62 5/8-18 X 5/16
CAT-45-1.000-STUBBY 1.000 1.375 CAT-45 2.25 4.62 5/8-18 X 5/16
CAT-45-1.250-STUBBY 1.250 1.375 CAT-45 2.25 4.62 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
BT-50-.250-STUBBY .250 2.12 BT-50 2.75 6.13 #10-32 X 1/8
BT-50-.375-STUBBY .375 2.12 BT-50 2.75 6.13 5/16-24 X 5/32
BT-50-.500-STUBBY .500 2.12 BT-50 2.75 6.13 7/16-20 X 7/32
BT-50-.625-STUBBY .625 2.12 BT-50 2.75 6.13 1/2-20 X 1/4
BT-50-.750-STUBBY .750 2.12 BT-50 2.75 6.13 1/2-20 X 1/4
BT-50-.875-STUBBY .875 2.12 BT-50 2.75 6.13 5/8-18 X 5/16
BT-50-1.000-STUBBY 1.000 2.12 BT-50 2.75 6.13 5/8-18 X 5/16
BT-50-1.250-STUBBY 1.250 2.12 BT-50 2.75 6.13 5/8-18 X 5/16
BT-50-1.500-STUBBY 1.500 2.12 BT-50 2.75 6.13 3/4-16 X 3/8
Catalog Number D R TAPER B L S.S.
CAT-50-.250-STUBBY .250 1.375 CAT-50 2.75 5.38 #10-32 X 1/8
CAT-50-.375-STUBBY .375 1.375 CAT-50 2.75 5.38 5/16-24 X 5/32
CAT-50-.500-STUBBY .500 1.375 CAT-50 2.75 5.38 7/16-20 X 7/32
CAT-50-.625-STUBBY .625 1.375 CAT-50 2.75 5.38 1/2-20 X 1/4
CAT-50-.750-STUBBY .750 1.375 CAT-50 2.75 5.38 1/2-20 X 1/4
CAT-50-.875-STUBBY .875 1.375 CAT-50 2.75 5.38 5/8-18 X 5/16
CAT-50-1.000-STUBBY 1.000 1.375 CAT-50 2.75 5.38 5/8-18 X 5/16
CAT-50-1.250-STUBBY 1.250 1.375 CAT-50 2.75 5.38 5/8-18 X 5/16
CAT-50-1.500-STUBBY 1.500 1.375 CAT-50 2.75 5.38 3/4-16 X 3/8
