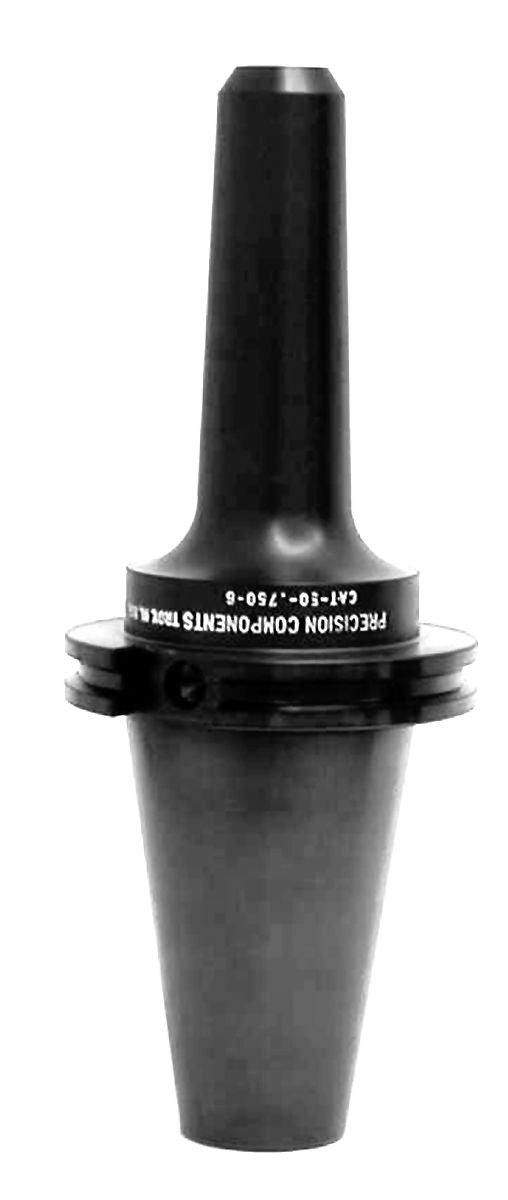

CAT-50 End Mill Extension

CAT-50 End Mill Extension

CAT-50 End Mill Extension extra image

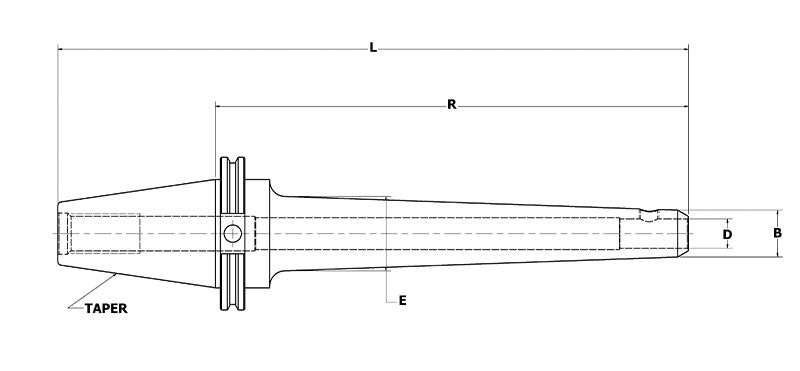

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "R"

CAT-50-.125-6

$473.00 USD
$473.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components CAT-50 V-Flange Tooling is designed to give maximum rigidity at extended lengths of 6", 9", 12", and 15" projections.

  • Hardened
  • Precision Ground
  • American Made

Available in Dual Contact - (DC)

*CAT-50-1.250-9 also available in Straight Shank

View full details

Specifications

Catalog Number D L R TAPER B E S.S.
CAT-50-.125-6 .125 10.00 6.00 CAT-50 .39 .71 #6-32 X 3/32
CAT-50-.125-9 .125 13.00 9.00 CAT-50 .39 .92 #6-32 X 3/32
CAT-50-.187-6 .187 10.00 6.00 CAT-50 .44 .76 #10-32 X 1/8
CAT-50-.187-9 .187 13.00 9.00 CAT-50 .44 .99 #10-32 X 1/8
CAT-50-.250-6 .250 10.00 6.00 CAT-50 .50 .82 #10-32 X 1/8
CAT-50-.250-9 .250 13.00 9.00 CAT-50 .50 1.03 #10-32 X 1/8
CAT-50-.250-12 .250 16.00 12.00 CAT-50 .50 1.24 #10-32 X 1/8
CAT-50-.250-15 .250 19.00 15.00 CAT-50 .70 1.62 #10-32 X 1/8
CAT-50-.312-6 .312 10.00 6.00 CAT-50 .56 .88 1/4-28 X 1/8
CAT-50-.312-9 .312 13.00 9.00 CAT-50 .56 1.09 1/4-28 X 1/8
CAT-50-.312-12 .312 16.00 12.00 CAT-50 .56 1.30 1/4-28 X 1/8
CAT-50-.312-15 .312 19.00 15.00 CAT-50 .76 1.67 1/4-28 X 1/8
CAT-50-.375-6 .375 10.00 6.00 CAT-50 .75 1.06 5/16-24 X 5/32
CAT-50-.375-9 .375 13.00 9.00 CAT-50 .75 1.27 5/16-24 X 5/32
CAT-50-.375-12 .375 16.00 12.00 CAT-50 .75 1.48 5/16-24 X 5/32
CAT-50-.375-15 .375 19.00 15.00 CAT-50 .75 1.69 5/16-24 X 5/32
CAT-50-.437-6 .437 10.00 6.00 CAT-50 .81 1.13 3/8-24 X 3/16
CAT-50-.437-9 .437 13.00 9.00 CAT-50 .81 1.34 3/8-24 X 3/16
CAT-50-.437-12 .437 16.00 12.00 CAT-50 .81 1.55 3/8-24 X 3/16
CAT-50-.437-15 .437 19.00 15.00 CAT-50 .81 1.76 3/8-24 X 3/16
CAT-50-.500-6 .500 10.00 6.00 CAT-50 .88 1.19 7/16-20 X 7/32
CAT-50-.500-9 .500 13.00 9.00 CAT-50 .88 1.40 7/16-20 X 7/32
CAT-50-.500-12 .500 16.00 12.00 CAT-50 .88 1.61 7/16-20 X 7/32
CAT-50-.500-15 .500 19.00 15.00 CAT-50 .88 1.82 7/16-20 X 7/32
CAT-50-.625-6 .625 10.00 6.00 CAT-50 1.06 1.37 1/2-20 X 1/4
CAT-50-.625-9 .625 13.00 9.00 CAT-50 1.06 1.58 1/2-20 X 1/4
CAT-50-.625-12 .625 16.00 12.00 CAT-50 1.06 1.79 1/2-20 X 1/4
CAT-50-.625-15 .625 19.00 15.00 CAT-50 1.06 2.00 1/2-20 X 1/4
CAT-50-.750-6 .750 10.00 6.00 CAT-50 1.19 1.50 1/2-20 X 1/4
CAT-50-.750-9 .750 13.00 9.00 CAT-50 1.19 1.71 1/2-20 X 1/4
CAT-50-.750-12 .750 16.00 12.00 CAT-50 1.19 1.92 1/2-20 X 1/4
CAT-50-.750-15 .750 19.00 15.00 CAT-50 1.19 2.13 1/2-20 X 1/4
CAT-50-.875-6 .875 10.00 6.00 CAT-50 1.43 1.62 5/8-18 X 5/16
CAT-50-.875-9 .875 13.00 9.00 CAT-50 1.43 1.83 5/8-18 X 5/16
CAT-50-.875-12 .875 16.00 12.00 CAT-50 1.43 2.04 5/8-18 X 5/16
CAT-50-.875-15 .875 19.00 15.00 CAT-50 1.43 2.25 5/8-18 X 5/16
CAT-50-1.000-6 1.000 10.00 6.00 CAT-50 1.62 1.93 5/8-18 X 5/16
CAT-50-1.000-9 1.000 13.00 9.00 CAT-50 1.62 2.13 5/8-18 X 5/16
CAT-50-1.000-12 1.000 16.00 12.00 CAT-50 1.62 2.34 5/8-18 X 5/16
CAT-50-1.000-15 1.000 19.00 15.00 CAT-50 1.62 2.55 5/8-18 X 5/16
CAT-50-1.250-6 1.250 10.00 6.00 CAT-50 1.88 2.19 5/8-18 X 5/16
CAT-50-1.250-9 1.250 13.00 9.00 CAT-50 1.88 2.39 5/8-18 X 5/16
CAT-50-1.250-9-STR 1.250 13.00 9.00 CAT-50 1.90 1.90 5/8-18 X 5/16
CAT-50-1.250-12 1.250 16.00 12.00 CAT-50 1.88 2.60 5/8-18 X 5/16
CAT-50-1.250-15 1.250 19.00 15.00 CAT-50 1.88 2.75 5/8-18 X 5/16
CAT-50-1.500-6 1.500 10.00 6.00 CAT-50 2.25 2.55 3/4-16 X 3/8
CAT-50-1.500-9 1.500 13.00 9.00 CAT-50 2.25 2.75 3/4-16 X 3/8
CAT-50-1.500-12 1.500 16.00 12.00 CAT-50 2.25 2.96 3/4-16 X 3/8
CAT-50-1.500-15 1.500 19.00 15.00 CAT-50 2.25 3.17 3/4-16 X 3/8
CAT-50-2.000-6 2.000 10.00 6.00 CAT-50 3.19 3.46 1-14 X 3/4
CAT-50-2.000-9 2.000 13.00 9.00 CAT-50 3.19 3.66 1-14 X 3/4
CAT-50-2.000-12 2.000 16.00 12.00 CAT-50 3.19 3.86 1-14 X 3/4
CAT-50-2.000-15 2.000 19.00 15.00 CAT-50 3.19 3.86 1-14 X 3/4
CAT-50-2.500-7 2.500 11.00 7.00 CAT-50 4.50 4.50 1-14 X 3/4
