Precision Components

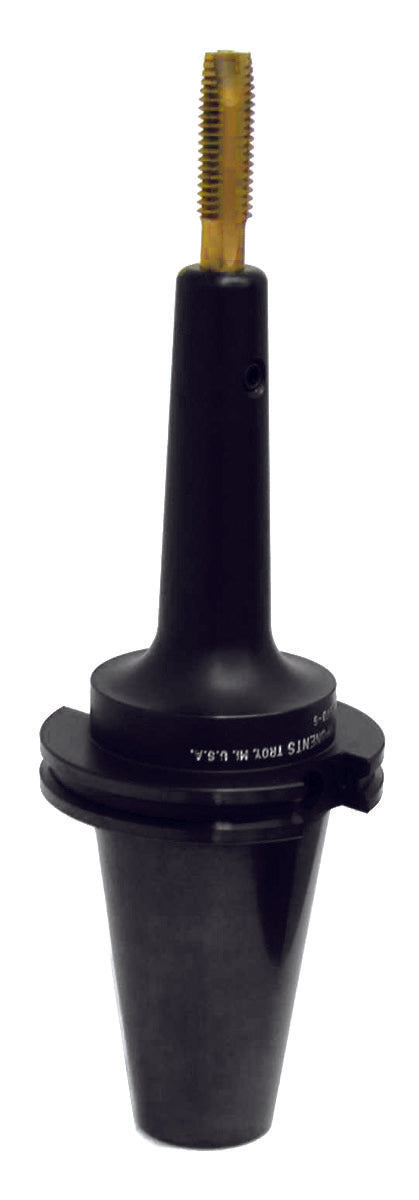

CAT-50 Metric DIN Shank Tap Driver

CAT-50 Metric DIN Shank Tap Driver

CAT-50 Metric DIN Shank Tap Driver extra image

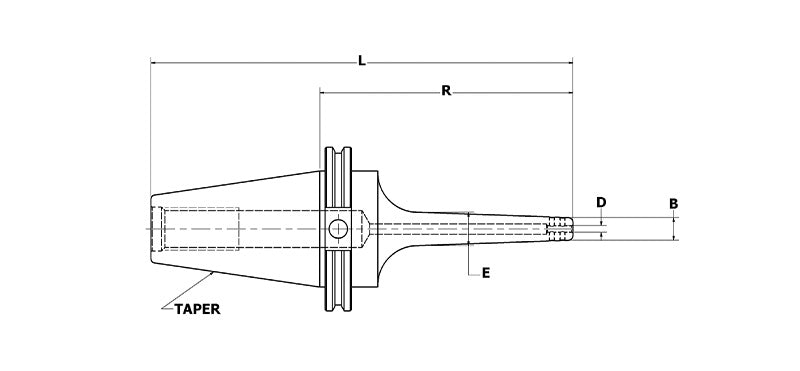

Select the desired dimension based on the technical drawing.

Tap Size
Dimension "D"
Dimension "R"

CAT-50-M2-M2.5TD-6

$474.00 USD
$474.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components’ Metric Din shank Tap Drivers eliminate the bushings and collets associated with most systems while providing maximum rigidity. It holds European style metric din shank taps. The slim design allows hard to reach areas to be tapped with minimum interference.

NOTE: Your machining center must have a synchronized tapping control.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

CATALOG NUMBER D L R TAPER B E S.S.
CAT-50-M2-M2.5TD-6 .110 10.00 6.00 CAT-50 .49 .81 #6-32 x 3/16
CAT-50-M2-M2.5TD-9 .110 13.00 9.00 CAT-50 .49 1.02 #6-32 x 3/16
CAT-50-M3TD-6 .137 10.00 6.00 CAT-50 .51 .83 #6-32 x 3/16
CAT-50-M3TD-9 .137 13.00 9.00 CAT-50 .51 1.04 #6-32 x 3/16
CAT-50-M3.5TD-6 .157 10.00 6.00 CAT-50 .54 .86 #6-32 x 3/16
CAT-50-M3.5TD-9 .157 13.00 9.00 CAT-50 .54 1.07 #6-32 x 3/16
CAT-50-M4TD-6 .177 10.00 6.00 CAT-50 .56 .88 #8-32 x 1/4
CAT-50-M4TD-9 .177 13.00 9.00 CAT-50 .56 1.09 #8-32 x 1/4
CAT-50-M4.5TD-M6TD-6 .236 10.00 6.00 CAT-50 .62 .94 #10-32 x 1/4
CAT-50-M4.5TD-M6TD-9 .236 13.00 9.00 CAT-50 .62 1.15 #10-32 x 1/4
CAT-50-M8TD-6 .315 10.00 6.00 CAT-50 .74 1.05 1/4-28 x 1/4
CAT-50-M8TD-9 .315 13.00 9.00 CAT-50 .74 1.26 1/4-28 x 1/4
CAT-50-M10TD-6S .275 10.00 6.00 CAT-50 .70 1.01 5/16-24 x 5/16
CAT-50-M10TD-9S .275 13.00 9.00 CAT-50 .70 1.22 5/16-24 x 5/16
CAT-50-M10TD-6L .393 10.00 6.00 CAT-50 .81 1.12 5/16-24 x 5/16
CAT-50-M10TD-9L .393 13.00 9.00 CAT-50 .81 1.33 5/16-24 x 5/16
CAT-50-M12TD-6 .354 10.00 6.00 CAT-50 .78 1.09 5/16-24 x 5/16
CAT-50-M12TD-9 .354 13.00 9.00 CAT-50 .78 1.30 5/16-24 x 5/16
CAT-50-M14TD-6 .433 10.00 6.00 CAT-50 .94 1.25 3/8-24 x 5/16
CAT-50-M14TD-9 .433 13.00 9.00 CAT-50 .94 1.46 3/8-24 x 5/16
CAT-50-M16TD-6 .472 10.00 6.00 CAT-50 .98 1.29 3/8-24 x 5/16
CAT-50-M16TD-9 .472 13.00 9.00 CAT-50 .98 1.50 3/8-24 x 5/16
CAT-50-M18TD-6 .551 10.00 6.00 CAT-50 1.06 1.37 3/8-24 x 5/16
CAT-50-M18TD-9 .551 13.00 9.00 CAT-50 1.06 1.58 3/8-24 x 5/16
CAT-50-M20TD-6 .630 10.00 6.00 CAT-50 1.14 1.45 1/2-20 x 3/8
CAT-50-M20TD-9 .630 13.00 9.00 CAT-50 1.14 1.66 1/2-20 x 3/8
CAT-50-M22-M24TD-6 .708 10.00 6.00 CAT-50 1.33 1.64 1/2-20 x 3/8
CAT-50-M22-M24TD-9 .708 13.00 9.00 CAT-50 1.33 1.85 1/2-20 x 3/8
CAT-50-M27TD-6 .787 10.00 6.00 CAT-50 1.54 1.84 5/8-18 x 1/2
CAT-50-M27TD-9 .787 13.00 9.00 CAT-50 1.54 2.05 5/8-18 x 1/2
CAT-50-M30TD-6 .866 10.00 6.00 CAT-50 1.62 1.92 5/8-18 x 1/2
CAT-50-M30TD-9 .866 13.00 9.00 CAT-50 1.62 2.13 5/8-18 x 1/2
CAT-50-M33TD-6 .984 10.00 6.00 CAT-50 1.98 2.27 5/8-18 x 1/2
CAT-50-M33TD-9 .984 13.00 9.00 CAT-50 1.98 2.48 5/8-18 x 1/2
CAT-50-M36TD-6 1.102 10.00 6.00 CAT-50 2.11 2.40 3/4-16 x 5/8
CAT-50-M36TD-9 1.102 13.00 9.00 CAT-50 2.11 2.61 3/4-16 x 5/8
CAT-50-M42TD-6 1.259 10.00 6.00 CAT-50 2.26 2.55 3/4-16 x 5/8
CAT-50-M42TD-9 1.259 13.00 9.00 CAT-50 2.26 2.75 3/4-16 x 5/8
CAT-50-M45-M48TD-6 1.417 10.00 6.00 CAT-50 2.45 2.75 3/4-16 x 5/8
CAT-50-M45-M48TD-9 1.417 13.00 9.00 CAT-50 2.45 2.94 3/4-16 x 5/8
CAT-50-M52TD-6 1.574 10.00 6.00 CAT-50 2.61 2.89 3/4-16 x 5/8
CAT-50-M52TD-9 1.574 13.00 9.00 CAT-50 2.61 3.11 3/4-16 x 5/8
