Precision Components

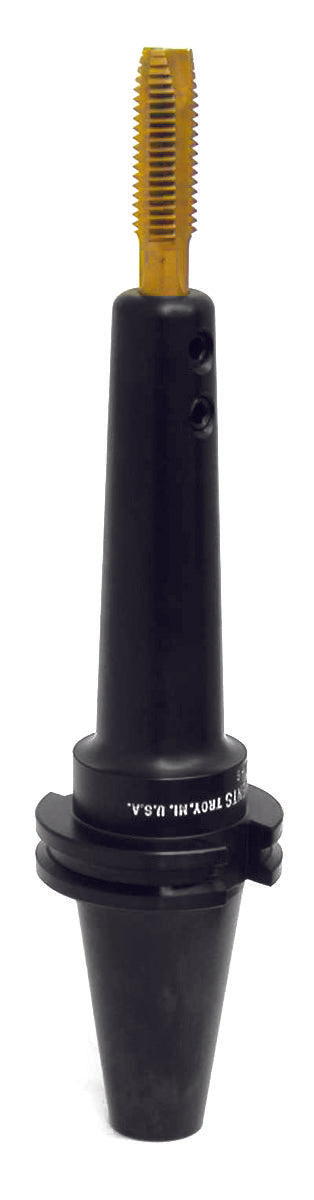

CAT-50 Pipe Tap Driver

CAT-50 Pipe Tap Driver

CAT-50 Pipe Tap Driver extra image

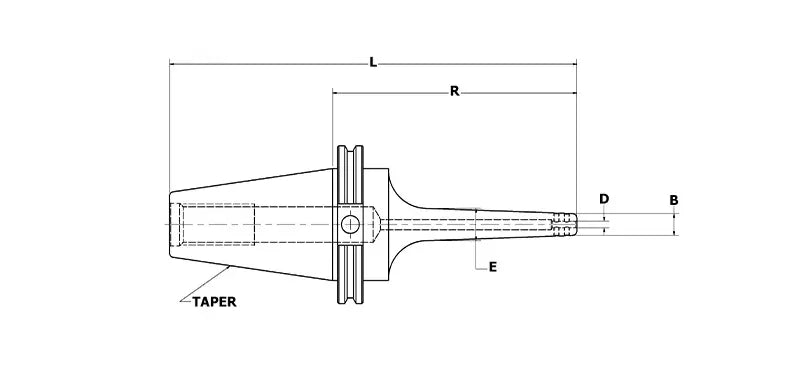

Select the desired dimension based on the technical drawing.

Tap Size
Dimension "D"
Dimension "R"

CAT-50-1/16-1/8PTD-6S

$456.00 USD
$456.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

COOLANT THROUGH DINS & MAHO KNOTCHES AVAILABLE UPON REQUEST
Precision Components’ Rigid Tap Drivers eliminate the brushings and collets associated with most systems. The slim design allows hard to reach areas to be tapped with minimum interference.

NOTE: Your machining center must have a synchronized tapping control.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

Catalog Number D L R TAPER B E S.S.
CAT-50-1/16-1/8PTD-6S .312 10.00 6.00 CAT-50 .69 1.02 1/4-28 x 1/4
CAT-50-1/16-1/8PTD-9S .312 13.00 9.00 CAT-50 .69 1.22 5/16-24 x 5/16
CAT-50-1/16-1/8PTD-6L .437 10.00 6.00 CAT-50 .86 1.19 1/4-28 x 1/4
CAT-50-1/16-1/8PTD-9L .437 13.00 9.00 CAT-50 .86 1.40 5/16-24 x 5/16
CAT-50-1/4PTD-6 .562 10.00 6.00 CAT-50 1.06 1.38 3/8-24 x 5/16
CAT-50-1/4PTD-9 .562 13.00 9.00 CAT-50 1.06 1.59 3/8-24 x 5/16
CAT-50-3/8PTD-6 .700 10.00 6.00 CAT-50 1.32 1.64 7/16-20 x 3/8
CAT-50-3/8PTD-9 .700 13.00 9.00 CAT-50 1.32 1.85 7/16-20 x 3/8
CAT-50-1/2PTD-6 .688 10.00 6.00 CAT-50 1.31 1.63 1/2-20 x 3/8
CAT-50-1/2PTD-9 .688 13.00 9.00 CAT-50 1.31 1.84 1/2-20 x 3/8
CAT-50-3/4PTD-6 .906 10.00 6.00 CAT-50 1.66 1.98 1/2-20 x 3/8
CAT-50-3/4PTD-9 .906 13.00 9.00 CAT-50 1.66 2.19 1/2-20 x 3/8
CAT-50-1.000PTD-6 1.125 10.00 6.00 CAT-50 2.13 2.45 1/2-20 X 3/8
CAT-50-1.000PTD-9 1.125 13.00 9.00 CAT-50 2.13 2.66 1/2-20 x 3/8
CAT-50-1.250PTD-6 1.312 10.00 6.00 CAT-50 2.31 2.62 5/8-18 x 1/2
CAT-50-1.250PTD-9 1.312 13.00 9.00 CAT-50 2.31 2.75 5/8-18 x 1/2
