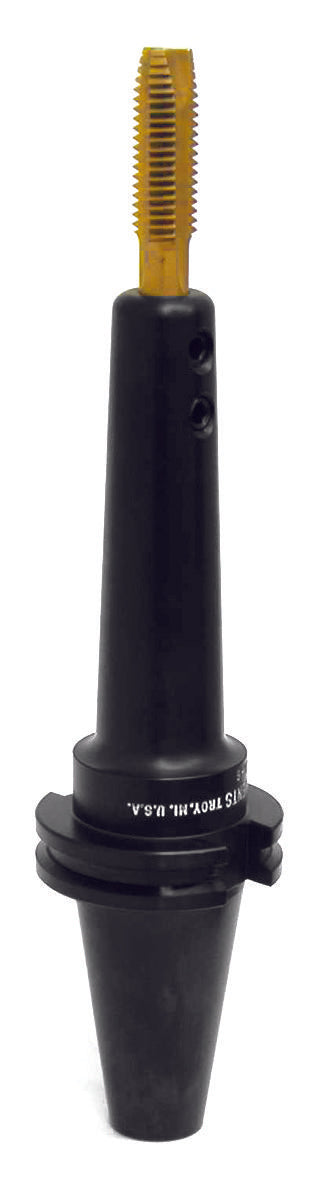

CAT-50 Tap Driver

CAT-50 Tap Driver

CAT-50 Tap Driver extra image

Select the desired dimension based on the technical drawing.

Tap Size
Dimension "D"
Dimension "R"

CAT-50-#0-#6TD-6

$474.00 USD
$474.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

COOLANT THROUGH DINS & MAHO KNOTCHES AVAILABLE UPON REQUEST
Precision Components’ Rigid Tap Drivers eliminate the brushings and collets associated with most systems. The slim design allows hard to reach areas to be tapped with minimum interference.

NOTE: Your machining center must have a synchronized tapping control.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

Catalog Number D L R TAPER B E S.S.
CAT-50-#0-#6TD-6 .141 10.00 6.00 CAT-50 .52 .84 #6-32 x 3/16
CAT-50-#0-#6TD-9 .141 13.00 9.00 CAT-50 .52 1.05 #6-32 x 3/16
CAT-50-#8TD-6 .168 10.00 6.00 CAT-50 .54 .86 #8-32 x 1/4
CAT-50-#8TD-9 .168 13.00 9.00 CAT-50 .54 1.07 #8-32 x 1/4
CAT-50-#10TD-6 .194 10.00 6.00 CAT-50 .57 .90 #10-32 x 1/4
CAT-50-#10TD-9 .194 13.00 9.00 CAT-50 .57 1.11 #10-32 x 1/4
CAT-50-#12TD-6 .220 10.00 6.00 CAT-50 .60 .92 #10-32 x 1/4
CAT-50-#12TD-9 .220 13.00 9.00 CAT-50 .60 1.13 #10-32 x 1/4
CAT-50-1/4TD-6 .225 10.00 6.00 CAT-50 .63 .96 #10-32 x 1/4
CAT-50-1/4TD-9 .225 13.00 9.00 CAT-50 .63 1.17 #10-32 x 1/4
CAT-50-5/16TD-6 .318 10.00 6.00 CAT-50 .74 1.07 1/4-28 x 1/4
CAT-50-5/16TD-9 .318 13.00 9.00 CAT-50 .74 1.28 1/4-28 x 1/4
CAT-50-3/8TD-6 .381 10.00 6.00 CAT-50 .80 1.13 5/16-24 x 5/16
CAT-50-3/8TD-9 .381 13.00 9.00 CAT-50 .80 1.34 5/16-24 x 5/16
CAT-50-7/16TD-6 .323 10.00 6.00 CAT-50 .74 1.07 5/16-24 x 5/16
CAT-50-7/16TD-9 .323 13.00 9.00 CAT-50 .74 1.27 5/16-24 x 5/16
CAT-50-1/2TD-6 .367 10.00 6.00 CAT-50 .79 1.12 5/16-24 x 5/16
CAT-50-1/2TD-9 .367 13.00 9.00 CAT-50 .79 1.33 5/16-24 x 5/16
CAT-50-9/16TD-6 .429 10.00 6.00 CAT-50 .93 1.27 5/16-24 x 5/16
CAT-50-9/16TD-9 .429 13.00 9.00 CAT-50 .93 1.47 5/16-24 x 5/16
CAT-50-5/8TD-6 .480 10.00 6.00 CAT-50 .98 1.31 3/8-24 x 5/16
CAT-50-5/8TD-9 .480 13.00 9.00 CAT-50 .98 1.52 3/8-24 x 5/16
CAT-50-3/4TD-6 .590 10.00 6.00 CAT-50 1.10 1.43 1/2-20 x 3/8
CAT-50-3/4TD-9 .590 13.00 9.00 CAT-50 1.10 1.63 1/2-20 x 3/8
CAT-50-7/8TD-6 .697 10.00 6.00 CAT-50 1.32 1.64 1/2-20 x 3/8
CAT-50-7/8TD-9 .697 13.00 9.00 CAT-50 1.32 1.85 1/2-20 x 3/8
CAT-50-1.000TD-6 .800 10.00 6.00 CAT-50 1.55 1.86 5/8-18 x 1/2
CAT-50-1.000TD-9 .800 13.00 9.00 CAT-50 1.55 2.07 5/8-18 x 1/2
CAT-50-1.062-1.125TD-6 .896 10.00 6.00 CAT-50 1.65 1.96 5/8-18 x 1/2
CAT-50-1.062-1.125TD-9 .896 13.00 9.00 CAT-50 1.65 2.17 5/8-18 x 1/2
CAT-50-1.187-1.250TD-6 1.021 10.00 6.00 CAT-50 1.90 2.22 5/8-18 x 1/2
CAT-50-1.187-1.250TD-9 1.021 13.00 9.00 CAT-50 1.90 2.43 5/8-18 x 1/2
CAT-50-1.312-1.375TD-6 1.108 10.00 6.00 CAT-50 2.11 2.43 3/4-16 x 5/8
CAT-50-1.312-1.375TD-9 1.108 13.00 9.00 CAT-50 2.11 2.64 3/4-16 x 5/8
CAT-50-1.437-1.500TD-6 1.233 10.00 6.00 CAT-50 2.24 2.54 3/4-16 x 5/8
CAT-50-1.437-1.500TD-9 1.233 13.00 9.00 CAT-50 2.24 2.75 3/4-16 x 5/8
CAT-50-2.000TD-6 1.644 10.00 6.00 CAT-50 3.00 3.30 1-14 x 3/4
CAT-50-2.000TD-6 1.644 13 9.00 CAT-50 3.00 3.50 1-14 x 3/4
