Precision Components

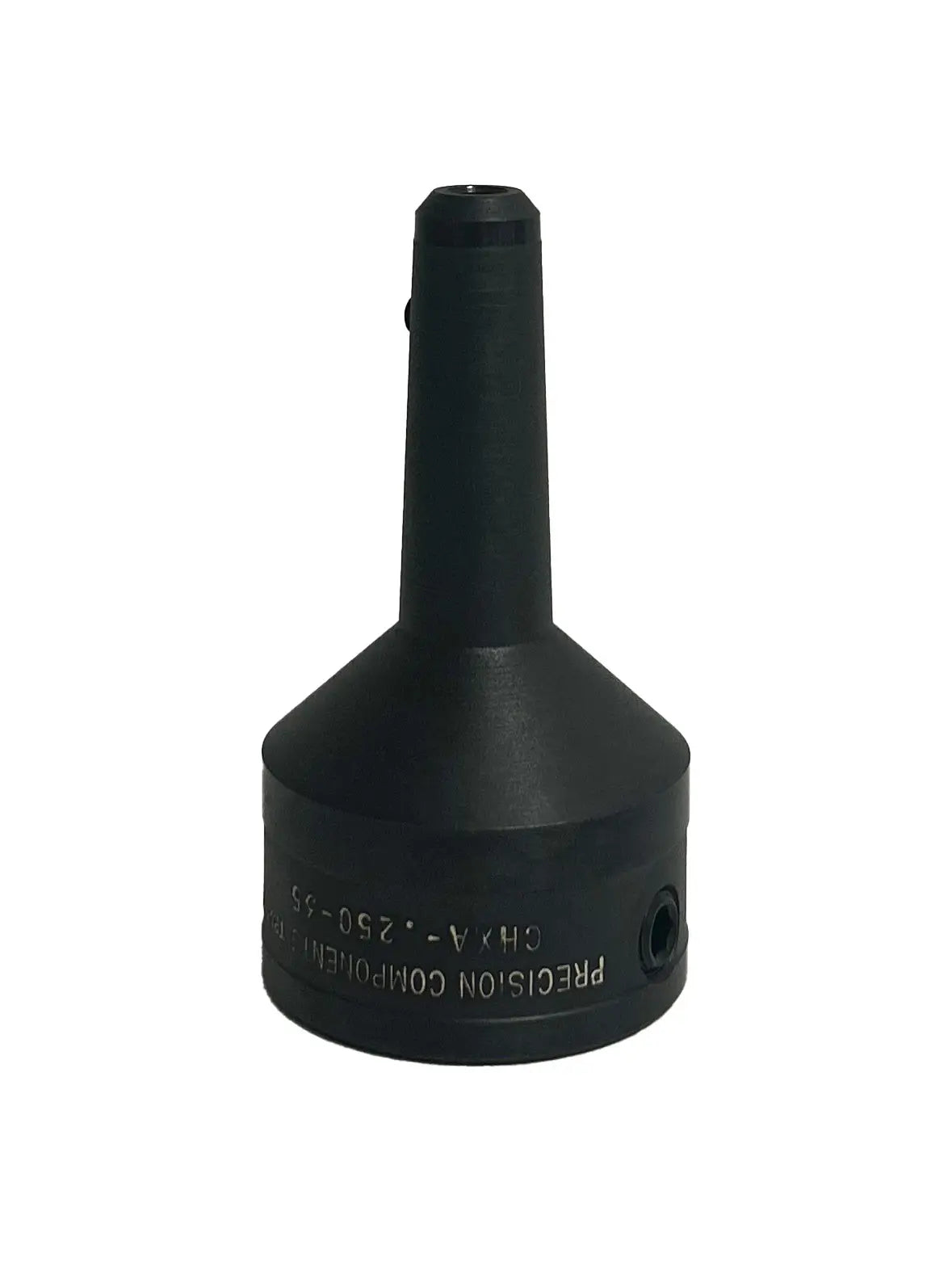

CHXA I.D. Adapter

CHXA I.D. Adapter

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "L"

CHXA-.250-35

$283.00 USD
$283.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components’ CHX accessories are designed to mount directly to Precision Components’ Hi-Tork™ cutter head locking system. Used whenever a tool change calls for converting a CHX 1.250” pilot, or just adding a couple of inches of reach to an existing CHX holder, these hardened and precision ground accessories significantly reduce tooling change over time.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

CATALOG NUMBER D L R A B
CHXA-.250-35 .250 3.50 1.95 CHX-1.250 .56
CHAX-.250-60 .250 6.00 4.45 CHX-1.250 .56
CHXA-.375-35 .375 3.50 2.07 CHX-1.250 .81
CHXA-.375-60 .375 6.00 4.57 CHX-1.250 .81
CHXA-.500-35 .500 3.50 2.14 CHX-1.250 .94
CHXA-.500-60 .500 6.00 4.64 CHX-1.250 .94
CHXA-.625-35 .625 3.50 2.23 CHX-1.250 1.12
CHXA-.625-60 .625 6.00 4.73 CHX-1.250 1.12
CHXA-.750-35 .750 3.50 2.30 CHX-1.250 1.25
CHXA-.750-60 .750 6.00 4.80 CHX-1.250 1.25
CHXA-1.000-35 1.000 3.50 2.51 CHX-1.250 1.68
CHXA-1.000-60 1.000 6.00 5.01 CHX-1.250 1.68
CHXA-1.250-35 1.250 3.50 3.50 CHX-1.250 1.90
CHXA-1.250-60 1.250 6.00 6.00 CHX-1.250 1.90
