CHXS Adapter Post

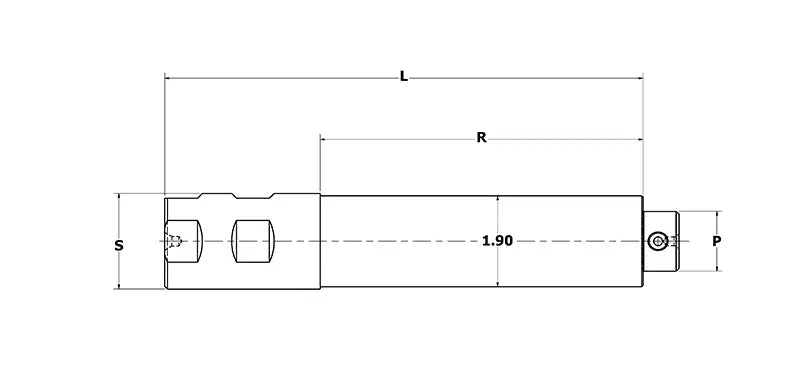

Select the desired dimension based on the technical drawing.

Dimension "L" 2.75 4.00 6.00 8.00 10.00 12.00 14.00

SKU:CHXS

$196.00 USD

Sale Sold out

1-800-525-1373

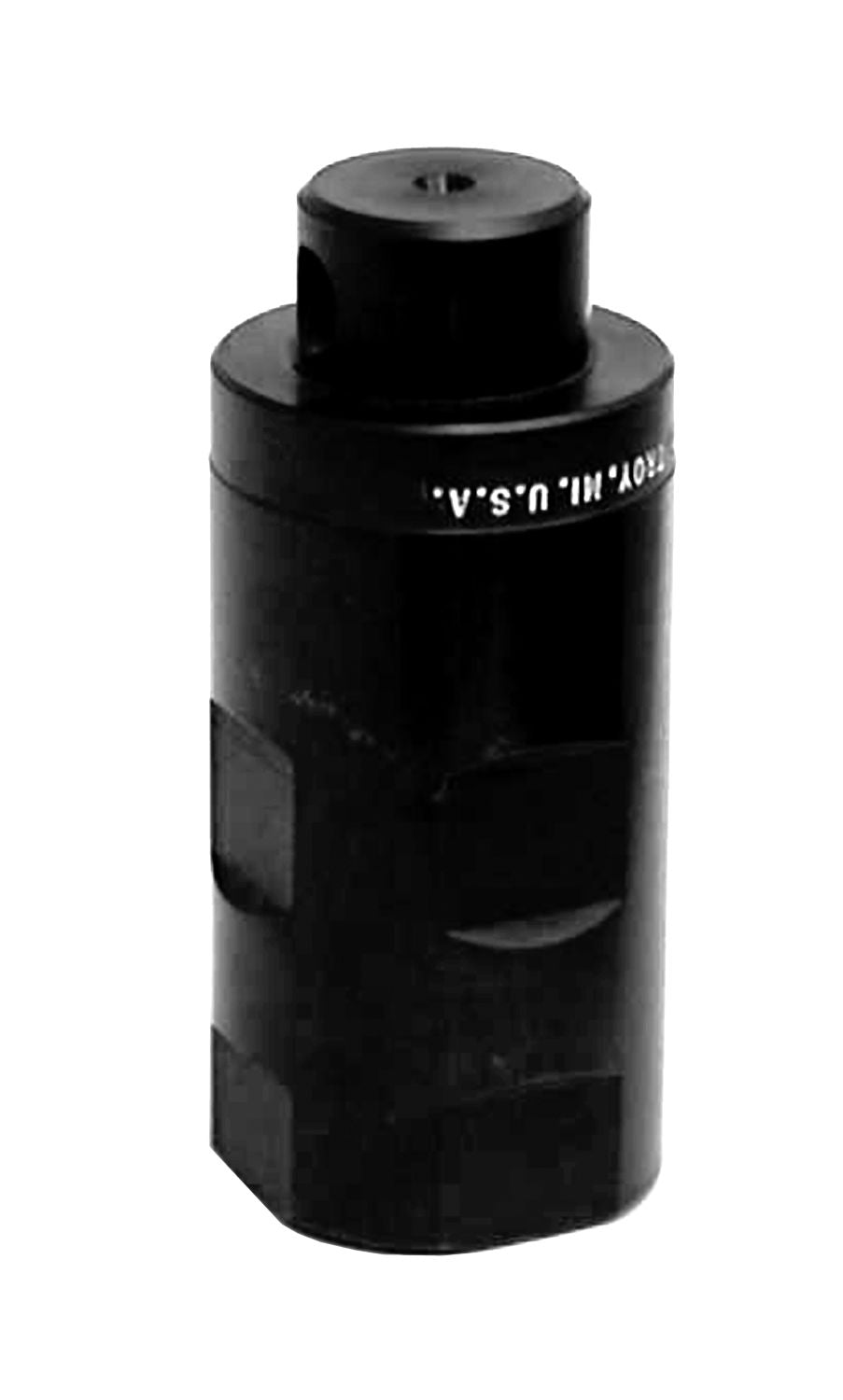

Precision Components’ CHXS adapter post converts a 1.250” and 2.000” end mill holder to a Hi-Tork™ cutter head mount.

Specifications

CATALOG NUMBER	P	L	R	S
CHXS	1.250	2.75	.50	1.250
CHXS-2.000-4	1.250	4.00	.75	2.000
CHXS-2.000-6	1.250	6.00	2.75	2.000
CHXS-2.000-8	1.250	8.00	4.75	2.000
CHXS-2.000-10	1.250	10.00	6.75	2.000
CHXS-2.000-12	1.250	12.00	8.75	2.000
CHXS-2.000-14	1.250	14.00	10.75	2.000
