Compensator

1-800-525-1373

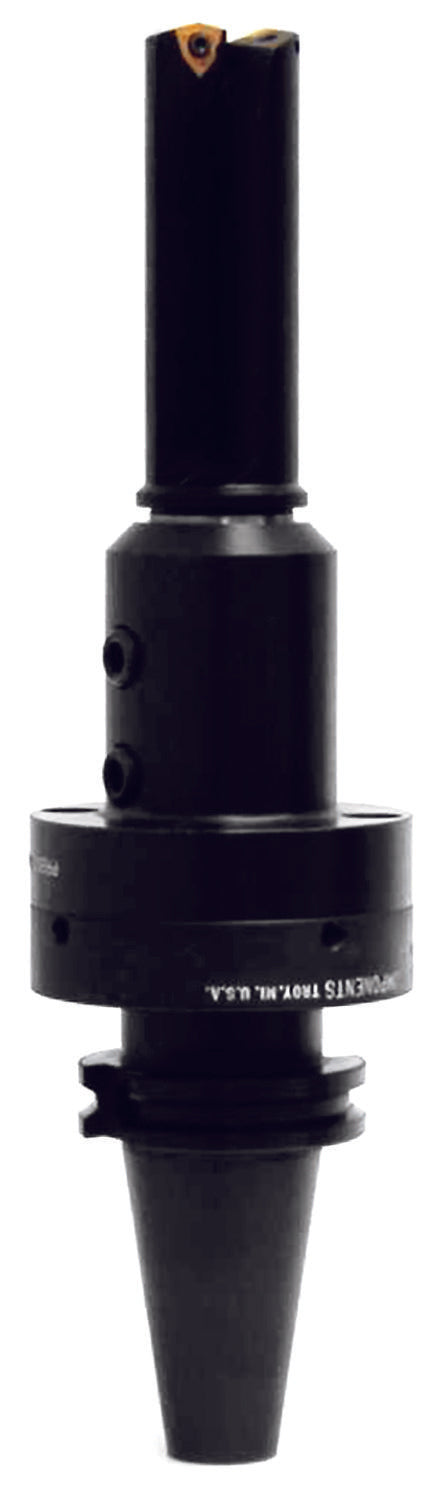

The compensator was originally developed for the mold industry, but now it has a dual purpose. Not only can the Compensator put your tools on dead zero run out, it also off-sets your indexable drills in your CNC mill to achieve sizes not offered. Example: your 1” indexable drill can be off set with the compensator to 1.010, 1.015, 1.020, etc. Thus eliminating secondary boring or reaming operations.

View full details

Specifications

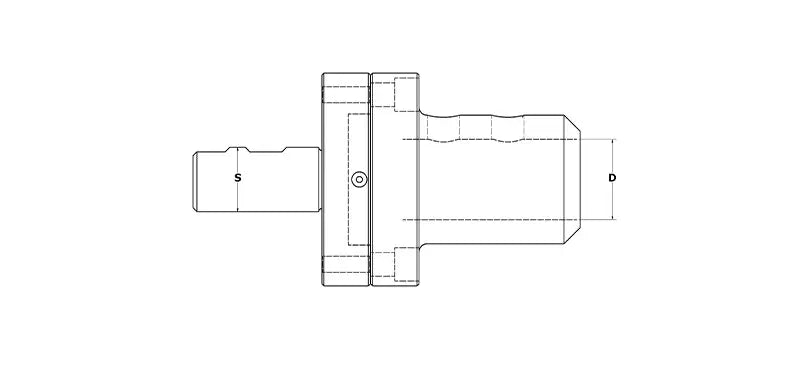

CATALOG NUMBER	S	D
CMP-.750-.750	.750 O.D.	.750
CMP-1.000-.750	1.000 O.D.	.750
CMP-1.000-1.000	1.000 O.D.	1.000
CMP-1.250-1.000	1.250 O.D.	1.000
CMP-1.250-1.250	1.250 O.D.	1.250
CMP-2.000-1.250	2.000 O.D.	1.250
CMP-2.000-2.000	2.000 O.D.	2.000
CMP-R8-1.000	R-8	1.000
CMP-R8-1.250	R-8	1.250
CMP-40-.750	CAT-40	.750
CMP-40-1.000	CAT-40	1.000
CMP-40-1.250	CAT-40	1.250
CMP-50-1.250	CAT-50	1.250
CMP-50-2.000	CAT-50	2.000
