Cutter Head Extensions
Cutter Head Extensions

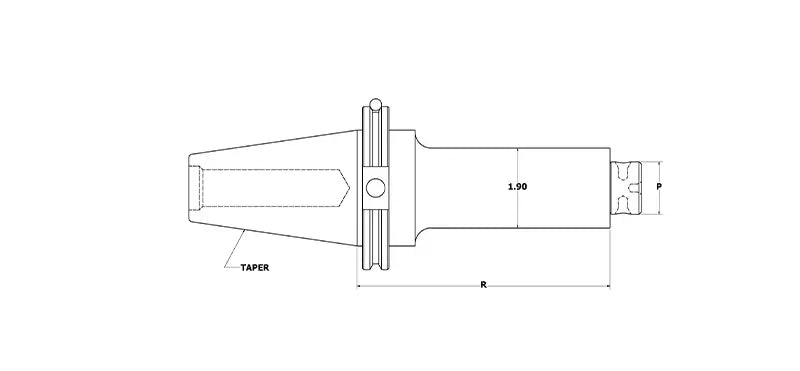

Select the desired dimension based on the technical drawing.
SKU:BT-40-CHX-1.19
Regular price
$263.00 USD
Regular price
Sale price
$263.00 USD
Unit price
per
Call for Availability
View full details
1-800-525-1373

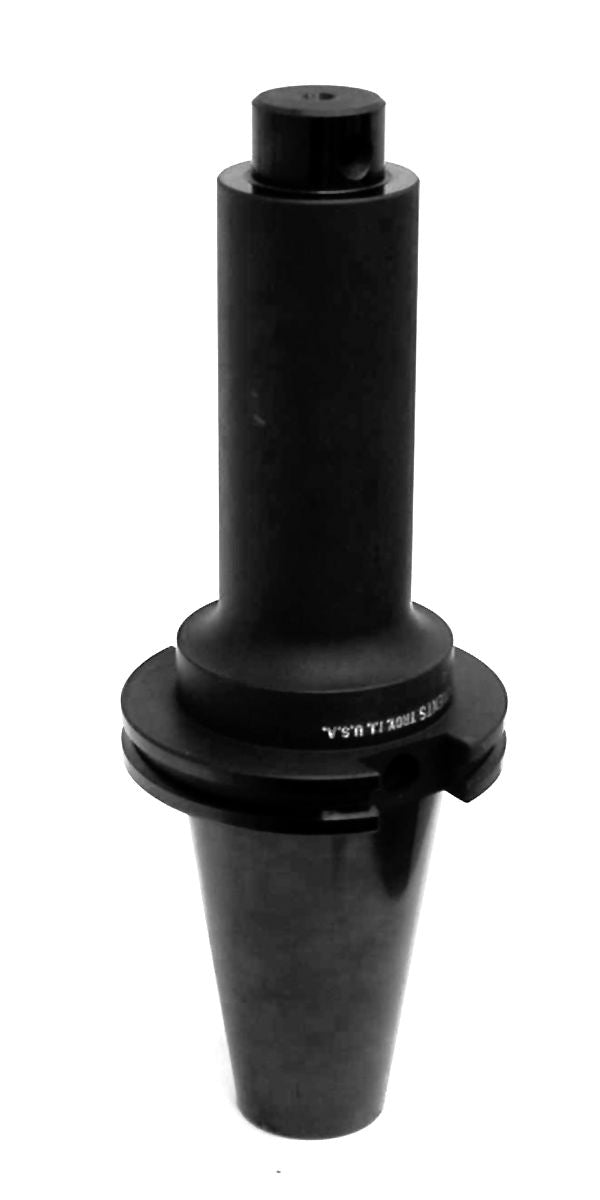

These Cutter Head Extensions have a straight body of 1.90" so that a 2.00" button cutter can machine deep cavities and walls without interference.
- Hardened
- Precision Ground
- American Made
Specifications
| CATALOG NUMBER | TAPER | R | P | TAPERED |
|---|---|---|---|---|
| BT-40-CHX-1.19 | BT-40 | 1.19 | 1.250 | NO |
| BT-40-CHX-03 | BT-40 | 3.00 | 1.250 | NO |
| BT-40-CHX-05 | BT-40 | 5.00 | 1.250 | NO |
| BT-40-CHX-07 | BT-40 | 7.00 | 1.250 | NO |
| CAT-40-CHX-1.38 | CAT-40 | 1.38 | 1.250 | NO |
| CAT-40-CHX-1.63 | CAT-40 | 1.63 | 1.250 | NO |
| CAT-40-CHX-03 | CAT-40 | 3.00 | 1.250 | NO |
| CAT-40-CHX-05 | CAT-40 | 5.00 | 1.250 | NO |
| CAT-40-CHX-07 | CAT-40 | 7.00 | 1.250 | NO |
| CAT-40-CHX-10 | CAT-40 | 10.00 | 1.250 | NO |
| CAT-50-CHX-.88 | CAT-50 | .88 | 1.250 | NO |
| CAT-50-CHX-04 | CAT-50 | 4.00 | 1.250 | NO |
| CAT-50-CHX-06 | CAT-50 | 6.00 | 1.250 | NO |
| CAT-50-CHX-06-T | CAT-50 | 6.00 | 1.250 | YES |
| CAT-50-CHX-08 | CAT-50 | 8.00 | 1.250 | NO |
| CAT-50-CHX-08-T | CAT-50 | 8.00 | 1.250 | YES |
| NMTB-50-CHX-.75 | NMTB-50 | .75 | 1.250 | NO |
| NMTB-50-CHX-04 | NMTB-50 | 4.00 | 1.250 | NO |
| NMTB-50-CHX-06 | NMTB-50 | 6.00 | 1.250 | NO |
| NMTB-50-CHX-06-T | NMTB-50 | 6.00 | 1.250 | YES |
| NMTB-50-CHX-08 | NMTB-50 | 8.00 | 1.250 | NO |
| NMTB-50-CHX-08-T | NMTB-50 | 8.00 | 1.250 | YES |
