Precision Components

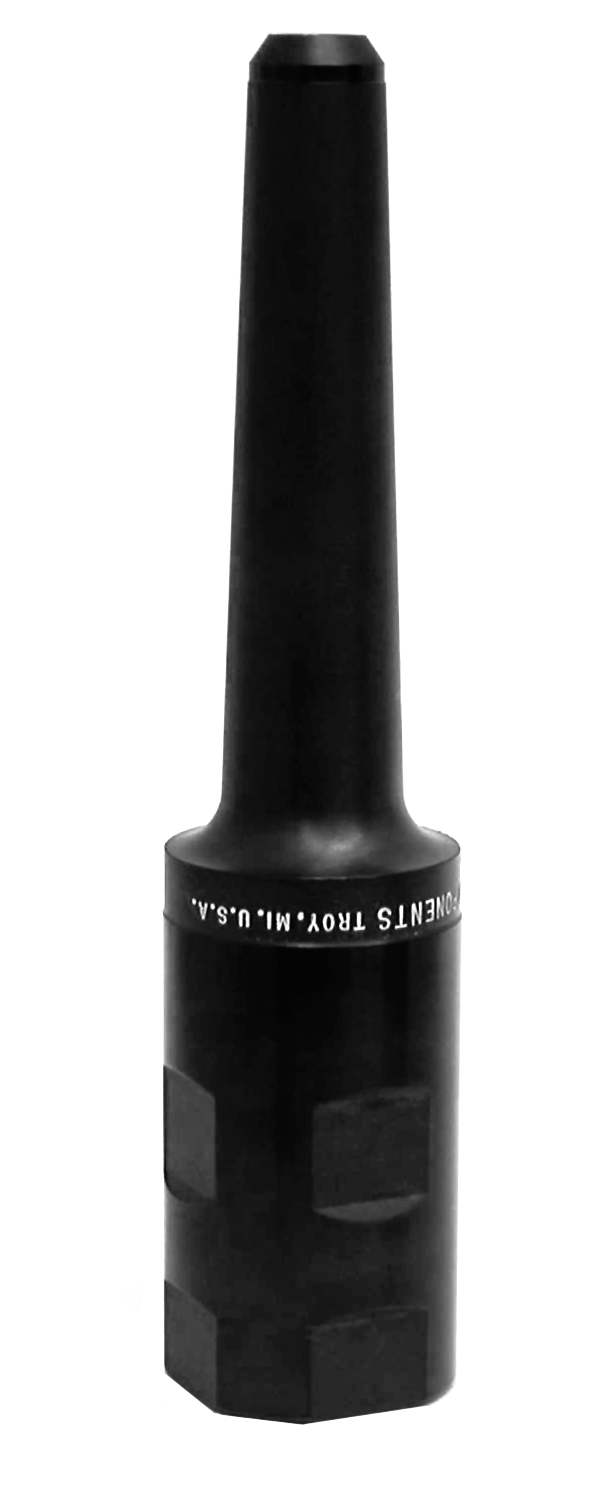

EMX End Mill Extension

EMX End Mill Extension

EMX End Mill Extension extra image

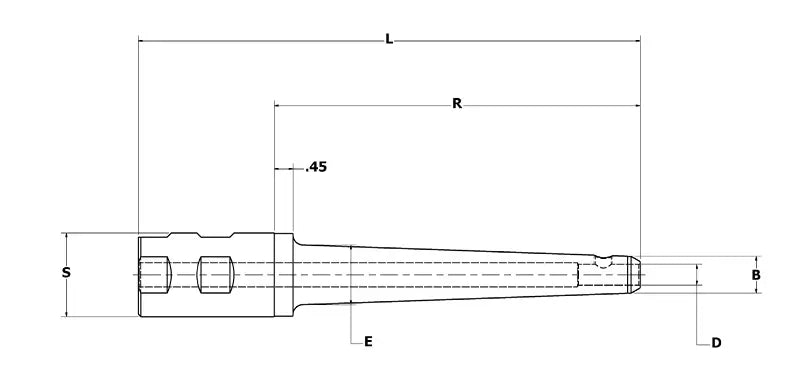

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "L"

EMX-.375-6

$317.00 USD
$317.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

These Precision Components End Mill Extensions are designed for hard to reach machining applications such as deep cavity and pocket milling. They provide excellent rigidity and accept single and double end end mills. Unique features include four flats 90° apart and a through hole.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

Catalog Number D L R S B E S.S.
EMX-.375-6 .375 6.00 3.00 2.000 .75 .90 5/16-20 x 5/23
EMX-.375-9 .375 9.00 6.00 2.000 .75 1.11 5/16-20 x 5/23
EMX-.375-12 .375 12.00 9.00 2.000 .75 1.32 5/16-20 x 5/23
EMX-.375-15 .375 15.00 12.00 2.000 .75 1.53 5/16-20 x 5/23
EMX-.437-6 .437 6.00 3.00 2.000 .81 .97 3/8-24 x 3/16
EMX-.437-9 .437 9.00 6.00 2.000 .81 1.18 3/8-24 x 3/16
EMX-.437-12 .437 12.00 9.00 2.000 .81 1.39 3/8-24 x 3/16
EMX-.437-15 .437 15.00 12.00 2.000 .81 1.60 3/8-24 x 3/16
EMX-.500-6 .500 6.00 3.00 2.000 .88 1.03 7/16-20 x 7/32
EMX-.500-9 .500 9.00 6.00 2.000 .88 1.24 7/16-20 x 7/32
EMX-.500-12 .500 12.00 9.00 2.000 .88 1.45 7/16-20 x 7/32
EMX-.500-15 .500 15.00 12.00 2.000 .88 1.66 7/16-20 x 7/32
EMX-.625-6 .625 6.00 3.00 2.000 1.06 1.21 1/2-20 x 1/4
EMX-.625-9 .625 9.00 6.00 2.000 1.06 1.42 1/2-20 x 1/4
EMX-.625-12 .625 12.00 9.00 2.000 1.06 1.63 1/2-20 x 1/4
EMX-.625-15 .625 15.00 12.00 2.000 1.06 1.83 1/2-20 x 1/4
EMX-.750-6 .750 6.00 3.00 2.000 1.19 1.34 1/2-20 x 1/4
EMX-.750-9 .750 9.00 6.00 2.000 1.19 1.55 1/2-20 x 1/4
EMX-.750-12 .750 12.00 9.00 2.000 1.19 1.75 1/2-20 x 1/4
EMX-.750-15 .750 15.00 12.00 2.000 1.19 1.96 1/2-20 x 1/4
EMX-.875-6 .875 6.00 3.00 2.000 1.31 1.46 5/8-18 x 5/16
EMX-.875-9 .875 9.00 6.00 2.000 1.31 1.67 5/8-18 x 5/16
EMX-.875-12 .875 12.00 9.00 2.000 1.31 1.87 5/8-18 x 5/16
EMX-.875-15 .875 15.00 12.00 2.000 1.31 1.98 5/8-18 x 5/16
EMX-1.000-6 1.000 6.00 3.00 2.000 1.62 1.76 5/8-18 x 5/16
EMX-1.000-9 1.000 9.00 6.00 2.000 1.62 1.97 5/8-18 x 5/16
EMX-1.000-12 1.000 12.00 9.00 2.000 1.62 1.98 5/8-18 x 5/16
EMX-1.000-15 1.000 15.00 12.00 2.000 1.62 1.98 5/8-18 x 5/16
EMX-1.250-6 1.250 6.00 3.00 2.000 1.75 1.98 5/8-18 x 5/16
EMX-1.250-9 1.250 9.00 6.00 2.000 1.75 1.98 5/8-18 x 5/16
EMX-1.250-12 1.250 12.00 9.00 2.000 1.75 1.98 5/8-18 x 5/16
EMX-1.250-15 1.250 15.00 12.00 2.000 1.75 1.98 5/8-18 x 5/16
