Precision Components

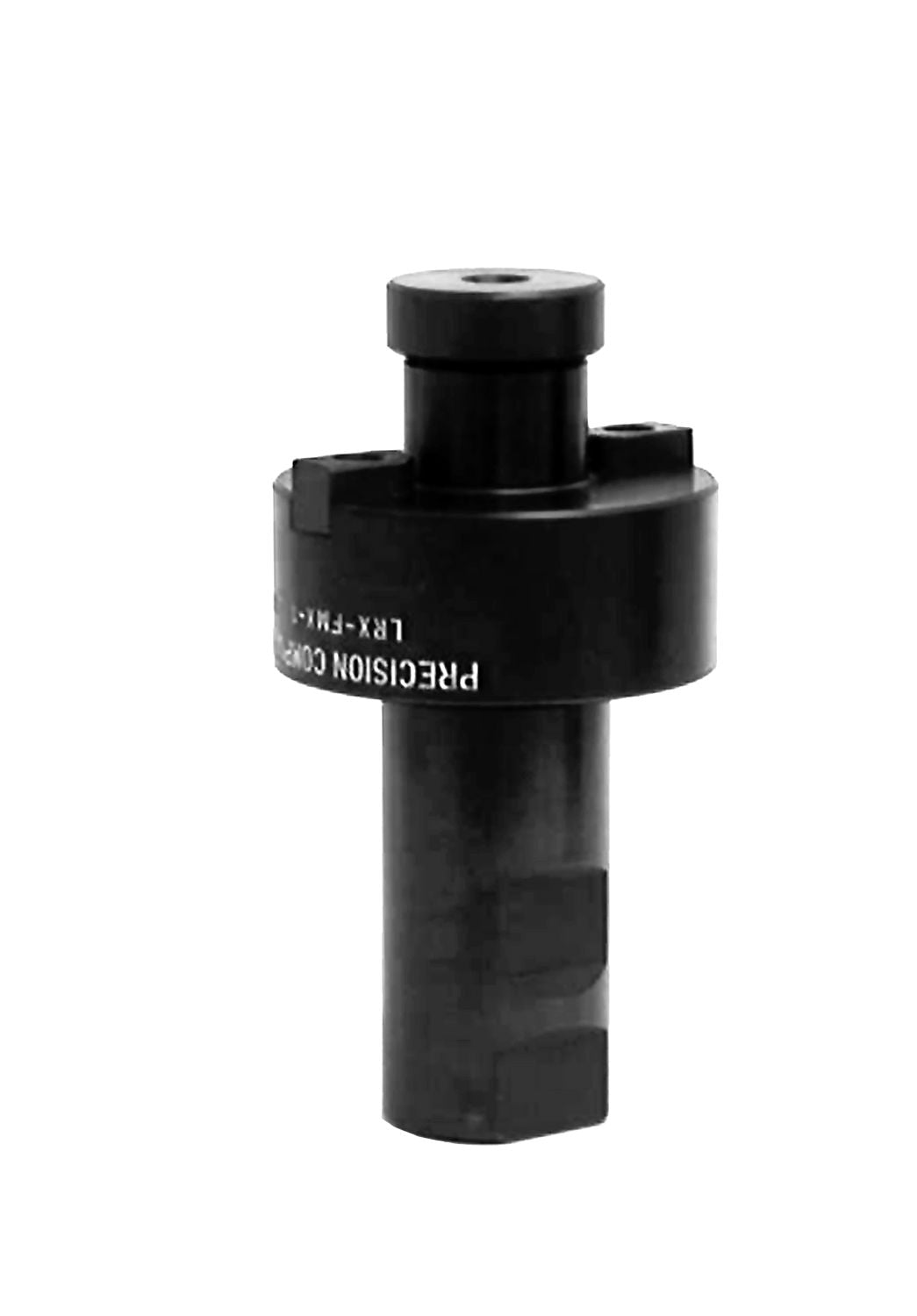

Face Mill / Shell Mill Adapter

Face Mill / Shell Mill Adapter

Face Mill / Shell Mill Adapter extra image

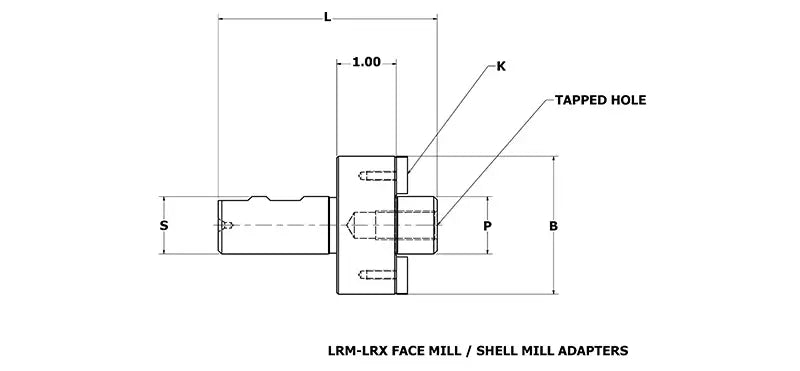

Select the desired dimension based on the technical drawing.

Shank Size
Flats
Dimension "P"

LRM-FMX-.500

$169.00 USD
$169.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components Face Mill / Shell Mill Extensions allow milling of hard to reach areas while maintaining rigidity at extended lengths. 4” thru 15” projections available.

  • Hardened
  • Precision Made
  • American Made

Includes Keys & Face Mill Screw

View full details

Specifications

CATALOG NUMBER FLATS P K TAPPED HOLE S B
LRX-FMX-.500 Y 500 .250 1/4-28 1.000 1.25
LRX-FMX-.500-NF N .500 .250 1/4-28 1.000 1.25
LRX-FMX-.750 Y .750 .312 3/8-24 1.000 1.75
LRX-FMX-.750-NF N .750 .312 3/8-24 1.000 1.75
LRX-FMX-1.000 Y 1.000 .375 1/2-20 1.000 2.40
LRX-FMX-1.000-NF N 1.000 .375 1/2-20 1.000 2.40
LRX-FMX-1.250 Y 1.250 .500 5/8-18 1.000 2.90
LRX-FMX-1.250-NF Y 1.250 .500 5/8-18 1.000 2.90
LRX-FMX-.500 Y .500 .250 1/4-28 1.250 1.25
LRX-FMX-.500-NF N .500 .250 1/4-28 1.250 1.25
LRX-FMX-.750 Y .750 .312 3/8-24 1.250 1.75
LRX-FMX-.750-NF N .750 .312 3/8-24 1.250 1.75
LRX-FMX-1.000 Y 1.000 .375 1/2-20 1.250 2.40
LRX-FMX-1.000-NF N 1.000 .375 1/2-20 1.250 2.40
LRX-FMX-1.250 Y 1.250 .500 5/8-18 1.250 2.90
LRX-FMX-1.500-NF Y 1.500 .625 3/4-16 1.250 3.90
