Precision Components

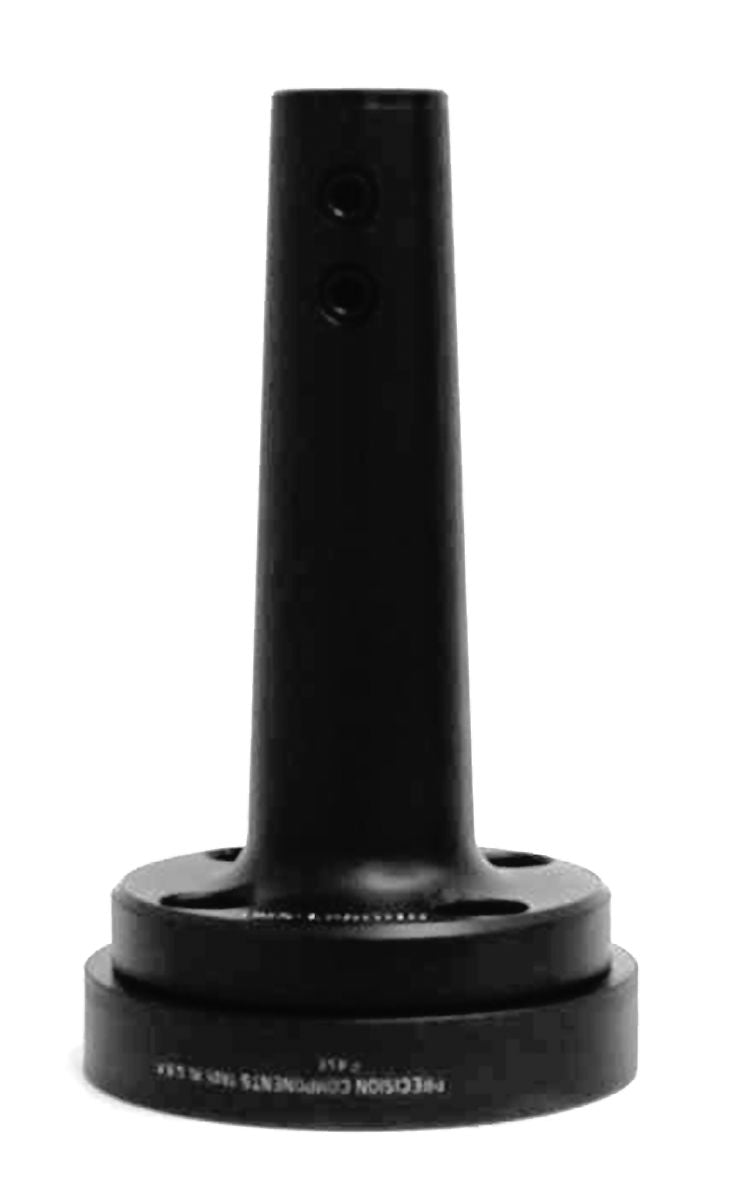

Flange Mount BMX 1-1/4 I.D. Flange Mount Ext.

Flange Mount BMX 1-1/4 I.D. Flange Mount Ext.

Flange Mount BMX 1-1/4 I.D. Flange Mount Ext. extra image

Select the desired dimension based on the technical drawing.

Dimension "L"

BMX-1.250-4

$736.00 USD
$736.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

These BMX Style Extensions are available in 11 lengths ranging from 4” to 24”. They feature a 1-¼” I.D. to accept all 1-¼” Shank Tooling.

View full details

Specifications

Catalog Number D L R B E
BMX-1.250-4 1.250 4.00 1.87 1.88 2.02
BMX-1.250-6 1.250 6.00 3.87 1.88 2.16
BMX-1.250-8 1.250 8.00 5.87 1.88 2.30
BMX-1.250-10 1.250 10.00 7.87 1.88 2.44
BMX-1.250-12 1.250 12.00 9.87 1.88 2.58
BMX-1.250-14 1.250 14.00 11.87 1.88 2.72
BMX-1.250-16 1.250 16.00 13.87 1.88 2.86
BMX-1.250-18 1.250 18.00 15.87 1.88 2.99
BMX-1.250-20 1.250 20.00 17.87 1.88 3.13
BMX-1.250-22 1.250 22.00 19.87 1.88 3.27
BMX-1.250-24 1.250 24.00 21.87 1.88 3.41
