Precision Components

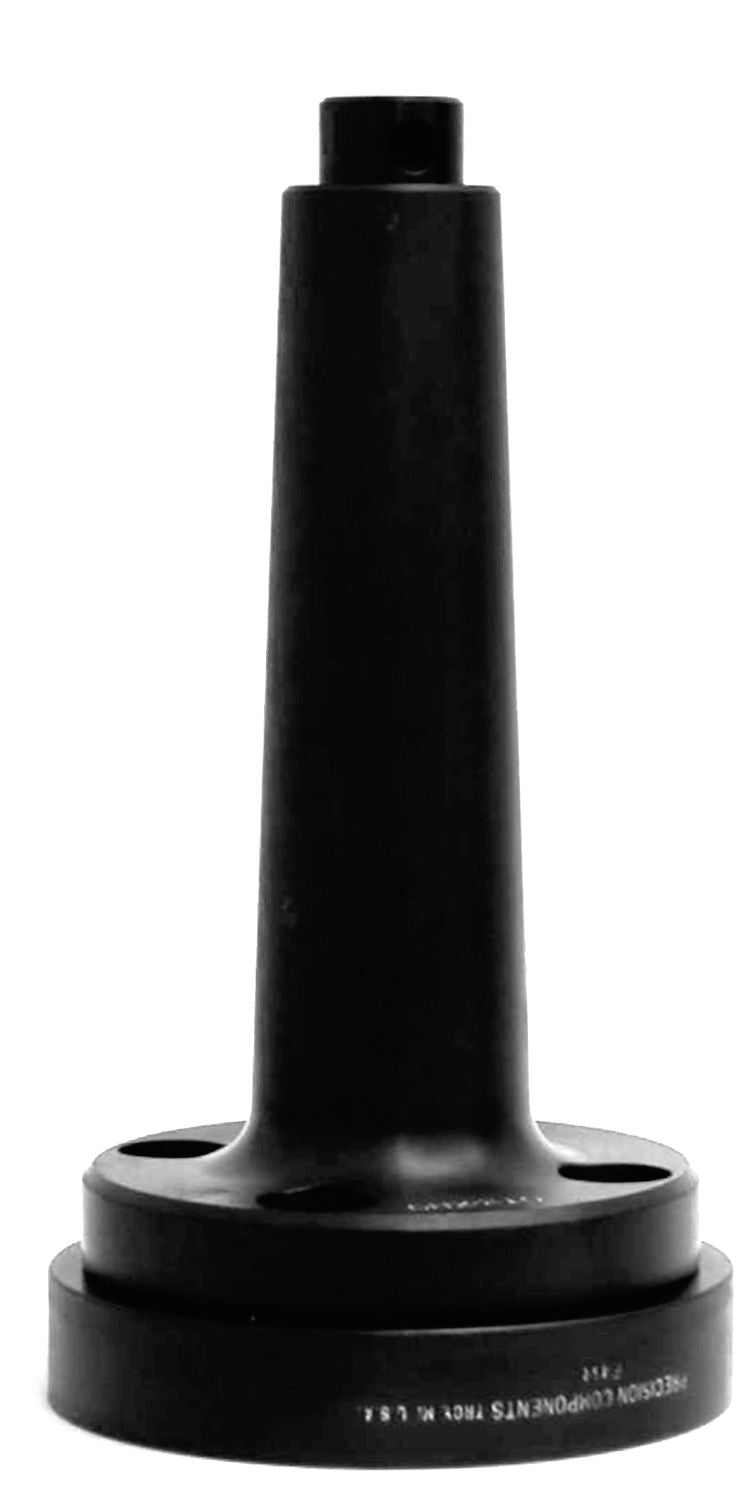

Flange Mount Cutter Head Ext.

Flange Mount Cutter Head Ext.

Flange Mount Cutter Head Ext. extra image

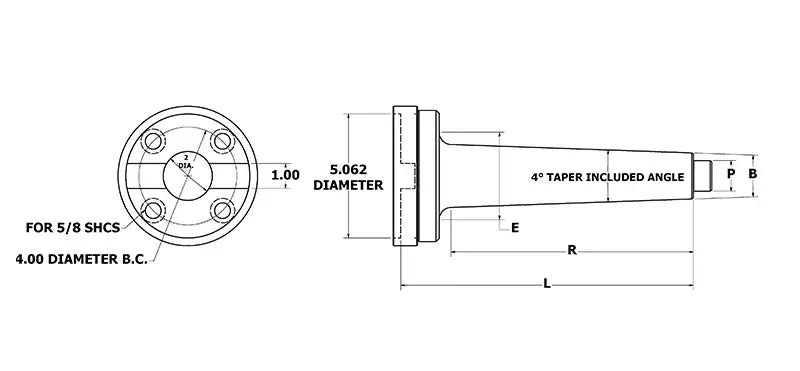

Select the desired dimension based on the technical drawing.

Dimension "L"
Dimension "B"

CHX-206

$771.00 USD
$771.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components Cutter Head Extension provides the rigidity required to mill deep cavities and pockets. These Flange Mounting Extensions are available in eleven lengths/ Straight body Flange Mount Extensions are also available.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

Catalog Number P L R B E
CHX-206 1.250 6.75 3.87 1.88 2.16
CHX-206-STR 1.250 6.75 3.87 1.90 1.90
CHX-208 1.250 8.75 5.87 1.88 2.30
CHX-208-STR 1.250 8.75 5.87 1.90 1.90
CHX-210 1.250 10.75 7.87 1.88 2.44
CHX-210-STR 1.250 10.75 7.78 1.90 1.90
CHX-212 1.250 12.75 9.87 1.88 2.58
CHX-212-STR 1.250 12.75 9.87 1.90 1.90
CHX-214 1.250 14.75 11.87 1.88 2.72
CHX-214-STR 1.250 14.75 11.87 1.90 1.90
CHX-216 1.250 16.75 13.87 1.88 2.86
CHX-218 1.250 18.75 15.87 1.88 2.99
CHX-220 1.250 20.75 17.87 1.88 3.13
CHX-222 1.250 22.75 19.87 1.88 3.27
CHX-224 1.250 24.75 21.87 1.88 3.41
CHX-226 1.250 26.75 23.87 1.88 3.55
