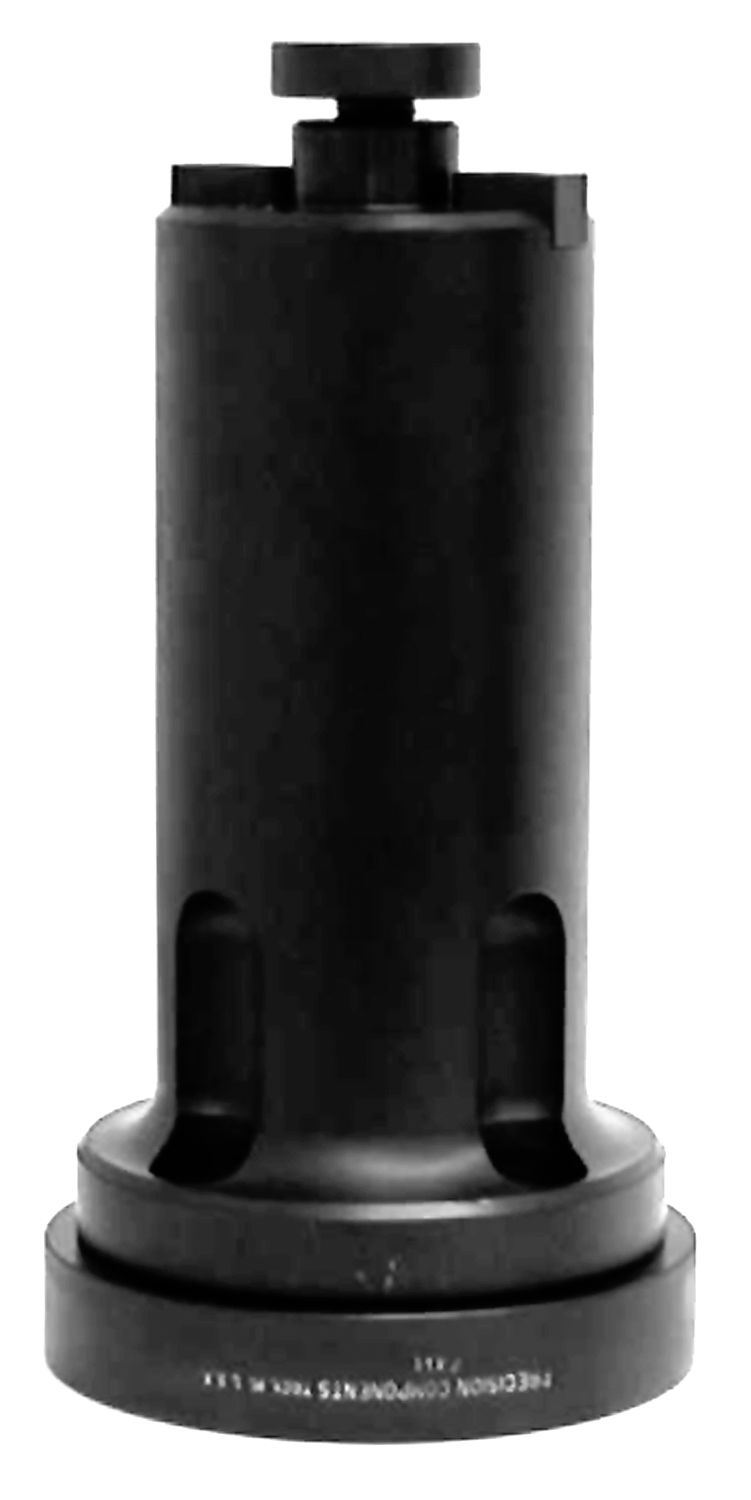

Flange Mount Face Mill Extensions

Flange Mount Face Mill Extensions

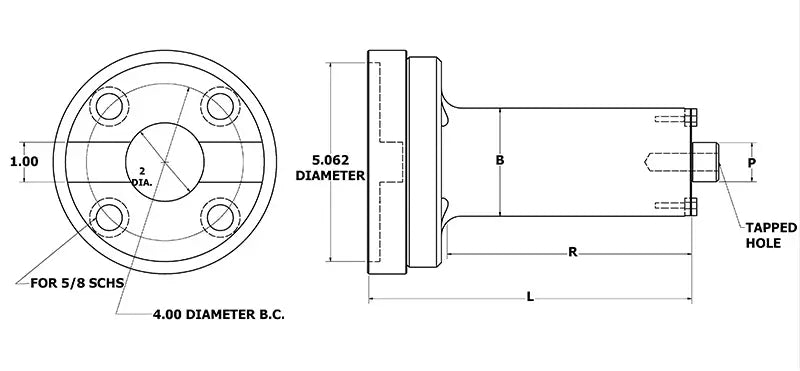

Flange Mount Face Mill Extensions extra image

Select the desired dimension based on the technical drawing.

Dimension "L"
Dimension "B"

FMX-305

$736.00 USD
$736.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

Precision Components Face Mill / Shell Mill Extensions provide the rigidity to mill deep cavities and pockets. Flange Mount Extensions are available in sixteen sizes.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

Catalog Number P B TAPPED HOLE L R
FMX-305 1.250 2.90 5/8-18 5.00 2.87
FMX-308 1.250 2.90 5/8-18 8.00 5.87
FMX-310 1.250 2.90 5/8-18 10.00 7.87
FMX-312 1.250 2.90 5/8-18 12.00 9.87
FMX-315 1.250 2.90 5/8-18 15.00 12.87
FMX-405 1.500 3.90 3/4-16 5.00 2.87
FMX-408 1.500 3.90 3/4-16 8.00 5.87
FMX-410 1.500 3.90 3/4-16 10.00 7.87
FMX-412 1.500 3.90 3/4-16 12.00 9.87
FMX-415 1.500 3.90 3/4-16 15.00 12.87
FMX-417 1.500 3.90 3/4-16 17.00 14.87
FMX-420 1.500 3.90 3/4-16 20.00 17.87
FMX-425 1.500 3.90 3/4-16 25.00 22.87
FMX-605 2.000 5.00 1-14 5.00 2.87
FMX-805 2.500 5.90 5/-18 4" BHC 6.00 3.87
FMX-808 2.500 5.90 5/-18 4" BHC 8.00 5.87
