LRM & LRX Metrics
LRM & LRX Metrics

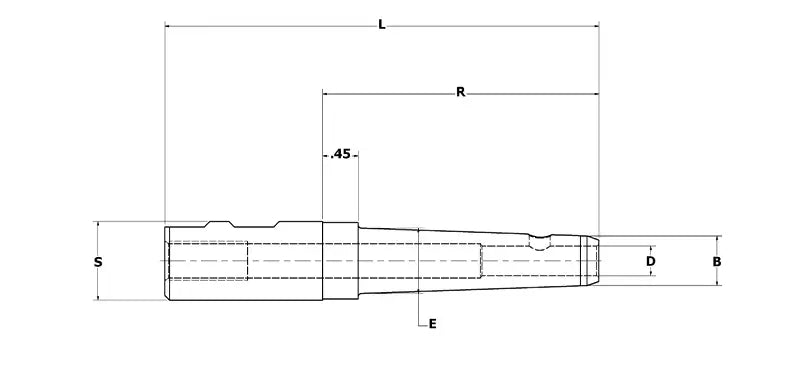

Select the desired dimension based on the technical drawing.
SKU:LRM-3MM-40-1
Regular price
$140.00 USD
Regular price
Sale price
$140.00 USD
Unit price
per
Call for Availability
View full details
1-800-525-1373

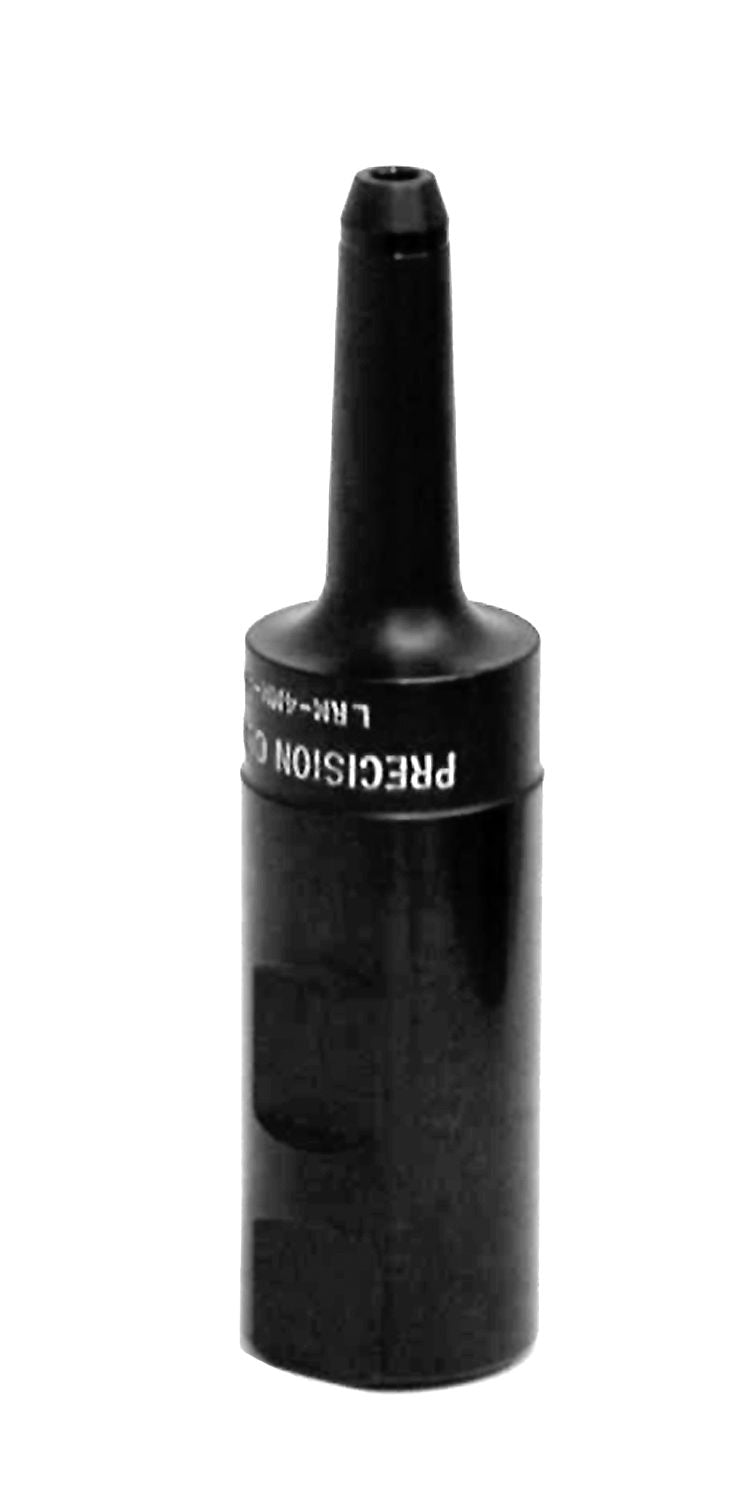

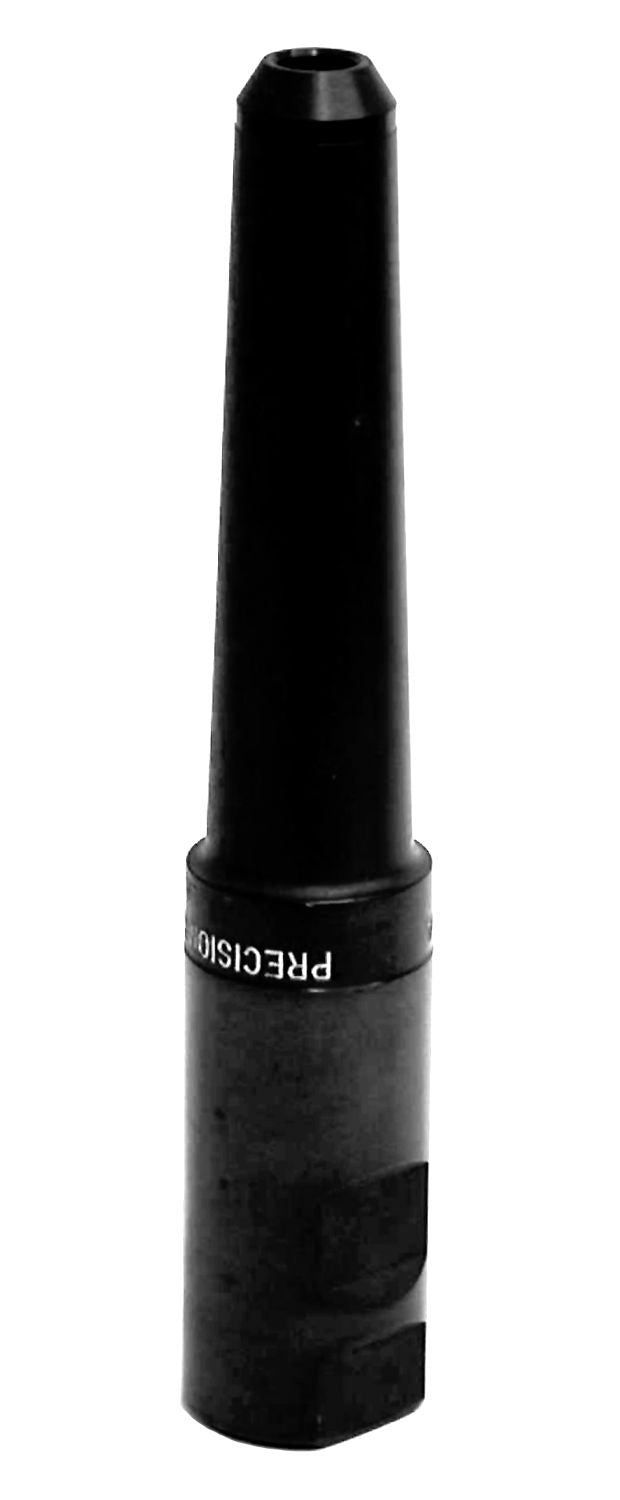

LRM and LRX Extensions with METRIC I.D.'s are designed to give maximum rigidity at extended lengths with clearance hole through to accept carbide blankets and double-end end mills.
- Hardened
- Precision Ground
- American Made
Specifications
| Catalog Number | D | L | R | S | B | E | S.S. |
|---|---|---|---|---|---|---|---|
| LRM-3MM-40-1 | 3MM | 4.00 | 2.00 | 1.000 | .32 | .42 | #6-32 x 3/32 |
| LRX-3MM-7 | 3MM | 7.00 | 4.50 | 1.250 | .32 | .60 | #6-32 x 3/32 |
| LRM-4MM-40-1 | 4MM | 4.00 | 2.00 | 1.000 | .36 | .46 | #8-32 x 7/64 |
| LRX-4MM-7 | 4MM | 7.00 | 4.50 | 1.250 | .36 | .64 | #8-32 x 7/64 |
| LRM-5MM-40-1 | 5MM | 4.00 | 2.00 | 1.000 | .40 | .50 | #10-32 x 1/8 |
| LRX-5MM-7 | 5MM | 7.00 | 4.50 | 1.250 | .40 | .68 | #10-32 x 1/8 |
| LRM-6MM-40-1 | 6MM | 4.00 | 2.00 | 1.000 | .44 | .54 | #10-32 x 1/8 |
| LRX-6MM-7 | 6MM | 7.00 | 4.50 | 1.250 | .49 | .77 | #10-32 x 1/8 |
| LRM-7MM-40-1 | 7MM | 4.00 | 2.00 | 1.000 | .48 | .58 | #10-32 x 1/8 |
| LRX-7MM-7 | 7MM | 7.00 | 4.50 | 1.250 | .53 | .81 | #10-32 x 1/8 |
| LRM-8MM-40-1 | 8MM | 4.00 | 2.00 | 1.000 | .52 | .62 | 1/4-28 x 1/8 |
| LRX-8MM-7 | 8MM | 7.00 | 4.50 | 1.250 | .57 | .85 | 1/4-28 x 1/8 |
| LRM-9MM-40-1 | 9MM | 4.00 | 2.00 | 1.000 | .61 | .71 | 5/16-24 x 5/32 |
| LRX-9MM-7 | 9MM | 7.00 | 4.50 | 1.250 | .73 | 1.00 | 5/16-24 x 5/32 |
| LRM-10MM-40-1 | 10MM | 4.00 | 2.00 | 1.000 | .65 | .75 | 5/16-24 x 5/32 |
| LRX-10MM-7 | 10MM | 7.00 | 4.50 | 1.250 | .77 | 1.04 | 5/16-24 x 5/32 |
| LRM-11MM-40-1 | 11MM | 4.00 | 2.00 | 1.000 | .73 | .83 | 3/8-24 x 3/16 |
| LRX-11MM-7 | 11MM | 7.00 | 4.50 | 1.250 | .81 | 1.08 | 3/8-24 x 3/16 |
| LRM-12MM-40-1 | 12MM | 4.00 | 2.00 | 1.000 | .80 | .90 | 7/16-20 x 7/32 |
| LRX-12MM-7 | 12MM | 7.00 | 4.50 | 1.250 | .85 | 1.12 | 7/16-20 x 7/32 |
| LRX-13MM-7 | 13MM | 7.00 | 4.50 | 1.250 | .89 | .97 | 7/16-20 x 7/32 |
| LRM-14MM-40-1 | 14MM | 4.00 | 2.00 | 1.000 | .88 | 1.23 | 1/2-20 x 1/4 |
| LRX-14MM-7 | 14MM | 7.00 | 4.50 | 1.250 | .93 | 1.23 | 1/2-20 x 1/4 |
| LRX-15MM-7 | 15MM | 7.00 | 4.50 | 1.250 | 1.03 | 1.23 | 1/2-20 x 1/4 |
| LRX-16MM-7 | 16MM | 7.00 | 4.50 | 1.250 | 1.07 | 1.23 | 1/2-20 x 1/4 |
| LRX-17MM-7 | 17MM | 7.00 | 4.50 | 1.250 | 1.11 | 1.23 | 1/2-20 x 1/4 |
| LRX-18MM-7 | 18MM | 7.00 | 4.50 | 1.250 | 1.14 | 1.23 | 1/2-20 x 1/4 |
| LRX-19MM-7 | 19MM | 7.00 | 4.50 | 1.250 | 1.18 | 1.23 | 1/2-20 x 1/4 |
| LRX-20MM-7 | 20MM | 7.00 | 4.50 | 1.250 | 1.22 | 1.23 | 1/2-20 x 1/4 |
