LRX End Mill Extension

LRX End Mill Extension

LRX End Mill Extension extra image

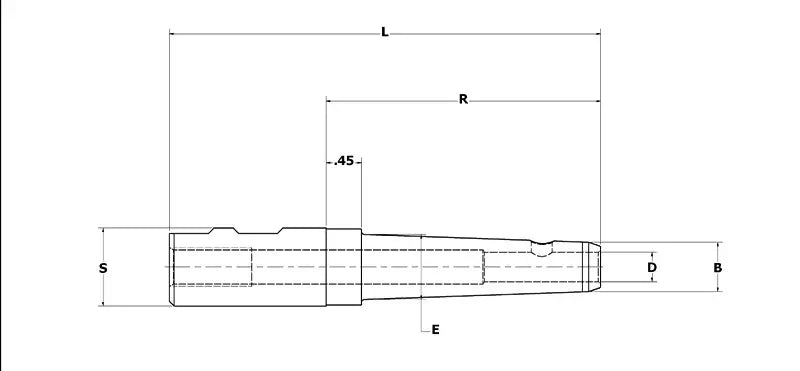

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "L"

LRX-.125-5

$227.00 USD
$227.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

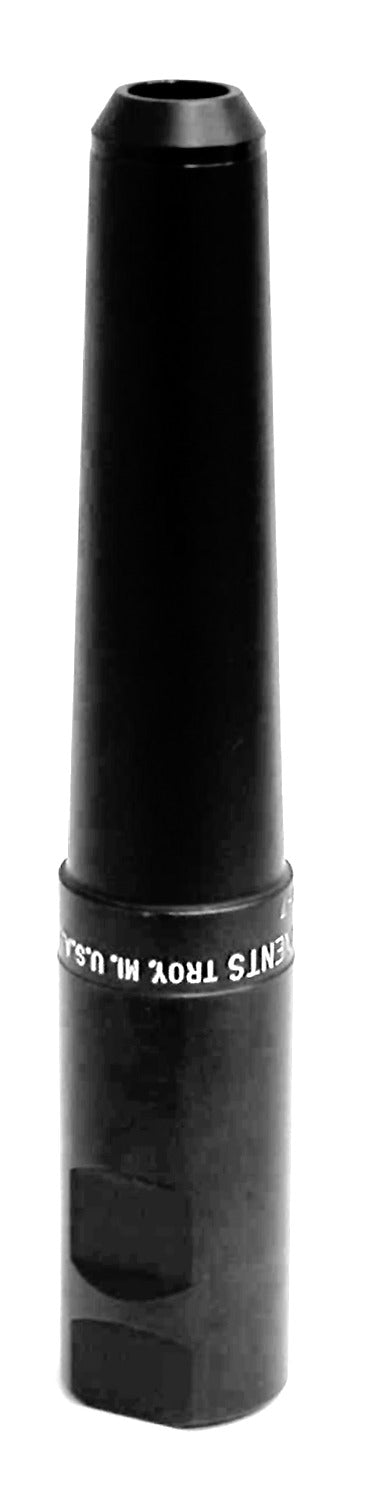

LRX Series End Mill Extensions are designed to give rigidity and strength to small diameter carbide and HSS end mills in hard to reach areas. A clearance hole extends through the entire holder for easy knock out and to accept double end end mill.

  • Hardened
  • Precision Ground
  • American Made

NOTE: * Accepts single ended end mills only

View full details

Specifications

Catalog Number D L R S B E S.S.
LRX-.125-5 .125 5.00 2.50 1.250 .32 .46 #6-32 X 3/32
LRX-.125-7 .125 7.00 4.50 1.250 .32 .60 #6-32 X 3/32
LRX-.125-9 .125 9.00 6.50 1.250 .32 .74 #6-32 X 3/32
LRX-.187-5 .187 5.00 2.50 1.250 .38 .52 #10-32 X 1/8
LRX-.187-7 .187 7.00 4.50 1.250 .38 .66 #10-32 X 1/8
LRX-.187-9 .187 9.00 6.50 1.250 .38 .80 #10-32 X 1/8
LRX-.250-5 .250 5.00 2.50 1.250 .50 .64 #10-32 X 1/8
LRX-.250-7 .250 7.00 4.50 1.250 .50 .78 #10-32 X 1/8
LRX-.250-9 .250 9.00 6.50 1.250 .50 .92 #10-32 X 1/8
LRX-.312-5 .312 5.00 2.50 1.250 .56 .70 1/4-28 X 1/8
LRX-.312-7 .312 7.00 4.50 1.250 .56 .84 1/4-28 X 1/8
LRX-.312-9 .312 9.00 6.50 1.250 .56 .98 1/4-28 X 1/8
LRX-.375-5 .375 5.00 2.50 1.250 .75 .88 5/16-24 X 5/32
LRX-.375-7 .375 7.00 4.50 1.250 .75 1.02 5/16-24 X 5/32
LRX-.375-9 .375 9.00 6.50 1.250 .75 1.16 5/16-24 X 5/32
LRX-.437-5 .437 5.00 2.50 1.250 .81 .94 3/8-24 X 3/16
LRX-.437-7 .437 7.00 4.50 1.250 .81 1.08 3/8-24 X 3/16
LRX-.437-9 .437 9.00 6.50 1.250 .81 1.22 3/8-24 X 3/16
LRX-.500-5 .500 5.00 2.50 1.250 .87 1.00 7/16-20 X 7/32
LRX-.500-7 .500 7.00 4.50 1.250 .87 1.14 7/16-20 X 7/32
LRX-.500-9 .500 9.00 6.50 1.250 .87 1.23 7/16-20 X 7/32
LRX-.500-11 .500 11.00 8.50 1.250 .87 1.23 7/16-20 X 7/32
LRX-.625-5 .625 5.00 2.50 1.250 1.06 1.19 1/2-20 X 1/4
LRX-.625-7 .625 7.00 4.50 1.250 1.06 1.23 1/2-20 X 1/4
LRX-.625-9 .625 9.00 6.50 1.250 1.06 1.23 1/2-20 X 1/4
LRX-.750-5 * .750 5.00 2.50 1.250 1.18 1.23 1/2-20 X 1/4
LRX-.750-7 .750 7.00 4.50 1.250 1.18 1.23 1/2-20 X 1/4
LRX-.750-9 .750 9.00 6.50 1.250 1.18 1.23 1/2-20 X 1/4
LRX-.750-11 .750 11.00 8.50 1.250 1.18 1.23 1/2-20 X 1/4
