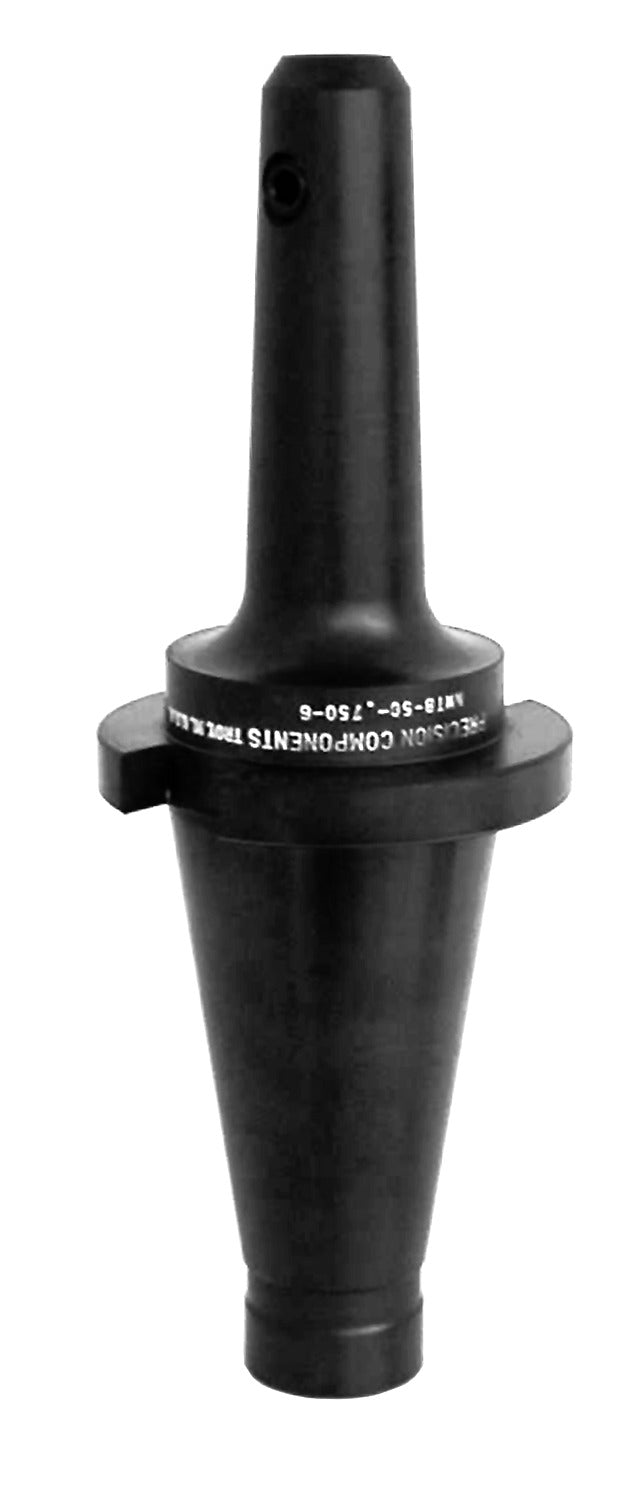

NMTB-50 End Mill Extension

NMTB-50 End Mill Extension

NMTB-50 End Mill Extension extra image

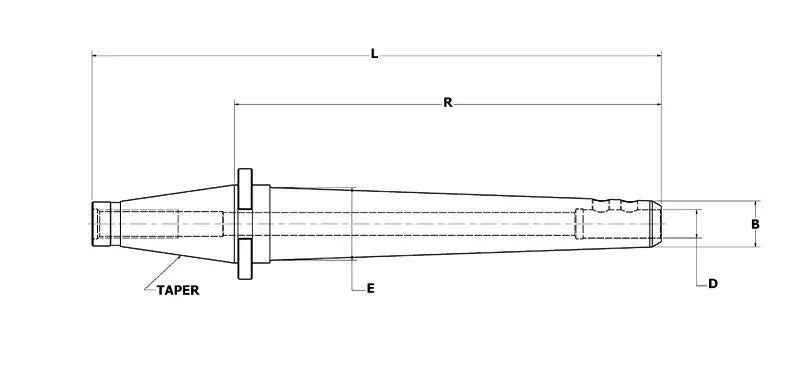

Select the desired dimension based on the technical drawing.

Dimension "D"
Dimension "R"

NMTB-50-.250-4

$400.00 USD
$400.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

* NMTB-50-1.250-9 also available in Straight Shank

View full details

Specifications

Catalog Number D L R S B E S.S.
LRX-.125-5 0.125 5 2.5 1.25 0.32 0.46 #6-32 X 3/32
LRX-.125-7 0.125 7 4.5 1.25 0.32 0.6 #6-32 X 3/32
LRX-.125-9 0.125 9 6.5 1.25 0.32 0.74 #6-32 X 3/32
LRX-.187-5 0.187 5 2.5 1.25 0.38 0.52 #10-32 X 1/8
LRX-.187-7 0.187 7 4.5 1.25 0.38 0.66 #10-32 X 1/8
LRX-.187-9 0.187 9 6.5 1.25 0.38 0.8 #10-32 X 1/8
LRX-.250-5 0.25 5 2.5 1.25 0.5 0.64 #10-32 X 1/8
LRX-.250-7 0.25 7 4.5 1.25 0.5 0.78 #10-32 X 1/8
LRX-.250-9 0.25 9 6.5 1.25 0.5 0.92 #10-32 X 1/8
LRX-.312-5 0.312 5 2.5 1.25 0.56 0.7 1/4-28 X 1/8
LRX-.312-7 0.312 7 4.5 1.25 0.56 0.84 1/4-28 X 1/8
LRX-.312-9 0.312 9 6.5 1.25 0.56 0.98 1/4-28 X 1/8
LRX-.375-5 0.375 5 2.5 1.25 0.75 0.88 5/16-24 X 5/32
LRX-.375-7 0.375 7 4.5 1.25 0.75 1.02 5/16-24 X 5/32
LRX-.375-9 0.375 9 6.5 1.25 0.75 1.16 5/16-24 X 5/32
LRX-.437-5 0.437 5 2.5 1.25 0.81 0.94 3/8-24 X 3/16
LRX-.437-7 0.437 7 4.5 1.25 0.81 1.08 3/8-24 X 3/16
LRX-.437-9 0.437 9 6.5 1.25 0.81 1.22 3/8-24 X 3/16
LRX-.500-5 0.5 5 2.5 1.25 0.87 1 7/16-20 X 7/32
LRX-.500-7 0.5 7 4.5 1.25 0.87 1.14 7/16-20 X 7/32
LRX-.500-9 0.5 9 6.5 1.25 0.87 1.23 7/16-20 X 7/32
LRX-.500-11 0.5 11 8.5 1.25 0.87 1.23 7/16-20 X 7/32
LRX-.625-5 0.625 5 2.5 1.25 1.06 1.19 1/2-20 X 1/4
LRX-.625-7 0.625 7 4.5 1.25 1.06 1.23 1/2-20 X 1/4
LRX-.625-9 0.625 9 6.5 1.25 1.06 1.23 1/2-20 X 1/4
LRX-.750-5 * 0.75 5 2.5 1.25 1.18 1.23 1/2-20 X 1/4
LRX-.750-7 0.75 7 4.5 1.25 1.18 1.23 1/2-20 X 1/4
LRX-.750-9 0.75 9 6.5 1.25 1.18 1.23 1/2-20 X 1/4
LRX-.750-11 0.75 11 8.5 1.25 1.18 1.23 1/2-20 X 1/4
