Precision Components

R-8 Adapters

R-8 Adapters

Select the desired dimension based on the technical drawing.

Taper
Dimension "R"

CAT-50-R8-6

$486.00 USD
$486.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

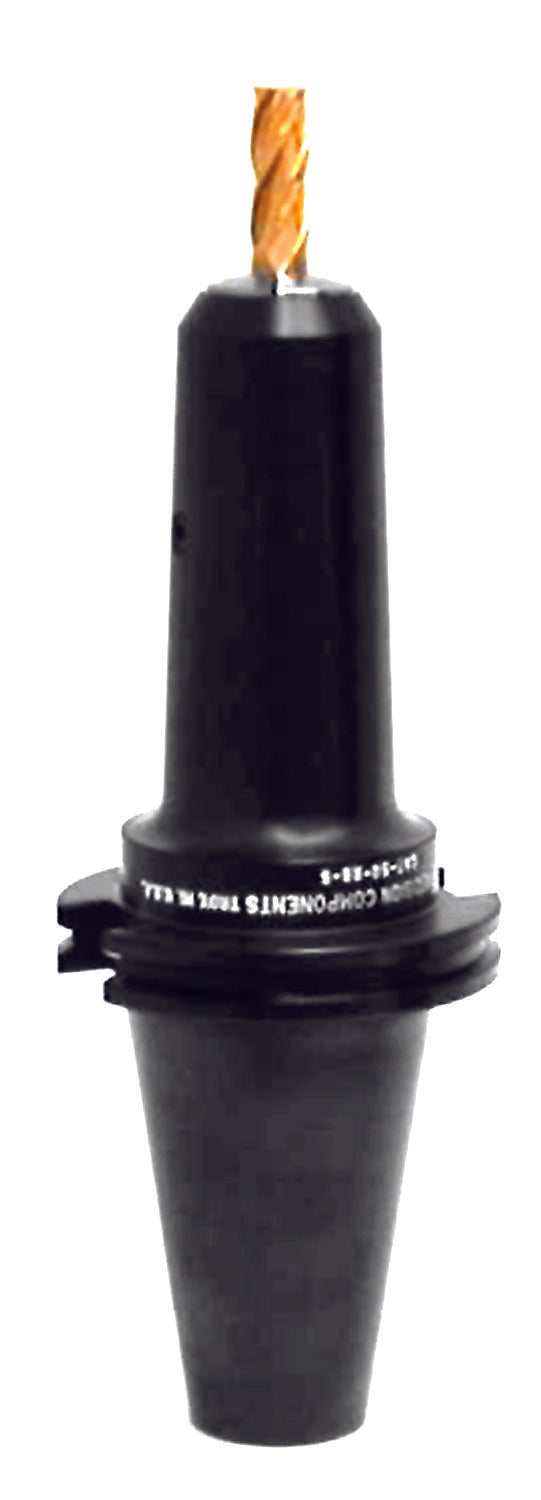

Precision Components’ New R-8 adapters come in either CAT-50, NMTB-50, or BT-50 and are available in 6, 9, 12 and 15 inch projections. These holders have drawbar positive locking, taper to taper fit, hole through retention stud to access drawbar, a large variety of available tooling, and a proven collet system without a large nut to cause interference.

  • Hardened
  • Precision Ground
  • American Made
View full details

Specifications

CATALOG NUMBER L R TAPER B E
CAT-50-R8-6 10.00 6.00 CAT-50 1.75 2.06
CAT-50-R8-9 13.00 9.00 CAT-50 1.75 2.27
CAT-50-R8-12 16.00 12.00 CAT-50 1.75 2.48
CAT-50-R8-15 19.00 15.00 CAT-50 1.75 2.69
BT-50-R8-6 10.00 6.00 BT-50 1.75 2.04
BT-50-R8-9 13.00 9.00 BT-50 1.75 2.25
BT-50-R8-12 16.00 12.00 BT-50 1.75 2.46
BT-50-R8-15 19.00 15.00 BT-50 1.75 2.67
NMTB-50-R8-6 11.00 6.00 NMTB-50 1.75 2.09
NMTB-50-R8-9 14.00 9.00 NMTB-50 1.75 2.30
NMTB-50-R8-12 17.00 12.00 NMTB-50 1.75 2.51
NMTB-50-R8-15 20.00 15.00 NMTB-50 1.75 2.72
