Precision Components

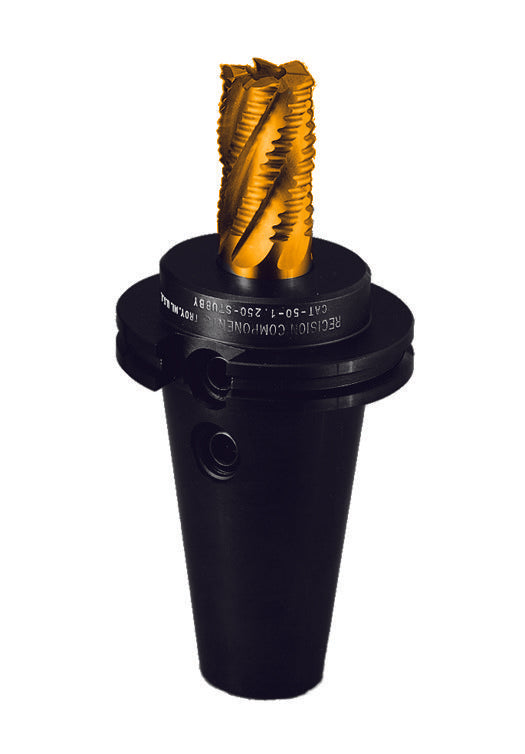

Stubby Holders

Stubby Holders

Stubby Holders extra image

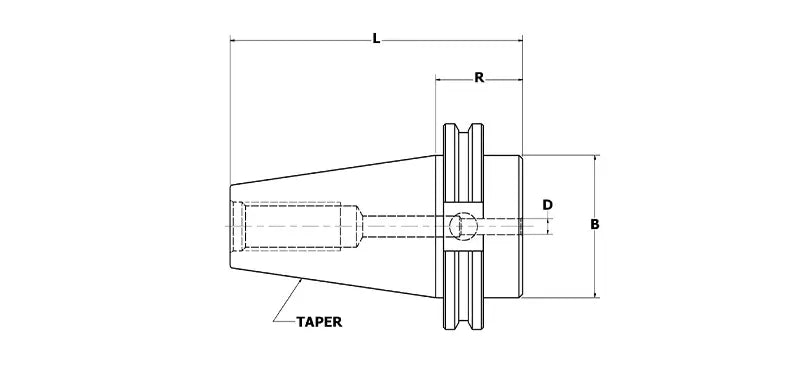

Select the desired dimension based on the technical drawing.

Taper
Dimension "D"

BT-30-.250-STUBBY

$161.00 USD
$161.00 USD
Sale Sold out
Call for Availability

1-800-525-1373

STUBBY tool holders give maximum rigidity, minimum deflection, and allows you to machine parts that are normally too tall for your Z axis.

  • Hardened
  • Precision Ground
  • American Made
  • 40 & 50 Tapers available in Dual Contact
View full details

Specifications

Catalog Number D R TAPER B L S.S.
BT-30-.250-STUBBY 0.25 1.375 BT-30 1.25 3.28 #10-32 X 1/8
BT-30-.312-STUBBY 0.312 1.375 BT-30 1.25 3.28 1/4-28 X 1/8
BT-30-.375-STUBBY 0.375 1.375 BT-30 1.25 3.28 5/16 - 24 X 5/32
BT-30-.500-STUBBY 0.5 1.375 BT-30 1.25 3.28 7/16 - 20 X 7/32
BT-30-.625-STUBBY 0.625 1.375 BT-30 1.25 3.28 1/2-20 X 1/4
BT-30-.750-STUBBY 0.75 1.375 BT-30 1.25 3.28 1/2-20 X 1/4
Catalog Number D R TAPER B L S.S.
BT-40-.250-STUBBY 0.25 1.69 BT-40 1.75 4.26 #10-32 X 1/8
BT-40-.375-STUBBY 0.375 1.69 BT-40 1.75 4.26 5/16-24 X 5/32
BT-40-.500-STUBBY 0.5 1.69 BT-40 1.75 4.26 7/16-20 X 7/32
BT-40-.625-STUBBY 0.625 1.69 BT-40 1.75 4.26 1/2-20 X 1/4
BT-40-.750-STUBBY 0.75 1.69 BT-40 1.75 4.26 1/2-20 X 1/4
BT-40-.875-STUBBY 0.875 1.69 BT-40 1.75 4.26 5/8-18 X 5/16
BT-40-1.000-STUBBY 1 1.69 BT-40 1.75 4.26 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
CAT-40-.250-STUBBY 0.25 1.375 CAT-40 1.75 4.06 #10-32 X 1/8
CAT-40-.375-STUBBY 0.375 1.375 CAT-40 1.75 4.06 5/16-24 X 5/32
CAT-40-.500-STUBBY 0.5 1.375 CAT-40 1.75 4.06 7/16-20 X 7/32
CAT-40-.625-STUBBY 0.625 1.375 CAT-40 1.75 4.06 1/2-20 X 1/4
CAT-40-.750-STUBBY 0.75 1.375 CAT-40 1.75 4.06 1/2-20 X 1/4
CAT-40-.875-STUBBY 0.875 1.375 CAT-40 1.75 4.06 5/8-18 X 5/16
CAT-40-1.000-STUBBY 1 1.375 CAT-40 1.75 4.06 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
BT-45-.250-STUBBY 0.25 1.92 BT-45 2.25 5.18 #10-32 X 1/8
BT-45-.375-STUBBY 0.375 1.92 BT-45 2.25 5.18 5/16-24 X 5/32
BT-45-.500-STUBBY 0.5 1.92 BT-45 2.25 5.18 7/16-20 X 7/32
BT-45-.625-STUBBY 0.625 1.92 BT-45 2.25 5.18 1/2-20 X 1/4
BT-45-.750-STUBBY 0.75 1.92 BT-45 2.25 5.18 1/2-20 X 1/4
BT-45-.875-STUBBY 0.875 1.92 BT-45 2.25 5.18 5/8-18 X 5/16
BT-45-1.000-STUBBY 1 1.92 BT-45 2.25 5.18 5/8-18 X 5/16
BT-45-1.250-STUBBY 1.25 1.92 BT-45 2.25 5.18 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
CAT-45-.250-STUBBY 0.25 1.375 CAT-45 2.25 4.62 #10-32 X 1/8
CAT-45-.375-STUBBY 0.375 1.375 CAT-45 2.25 4.62 5/16-24 X 5/32
CAT-45-.500-STUBBY 0.5 1.375 CAT-45 2.25 4.62 7/16-20 X 7/32
CAT-45-.625-STUBBY 0.625 1.375 CAT-45 2.25 4.62 1/2-20 X 1/4
CAT-45-.750-STUBBY 0.75 1.375 CAT-45 2.25 4.62 1/2-20 X 1/4
CAT-45-.875-STUBBY 0.875 1.375 CAT-45 2.25 4.62 5/8-18 X 5/16
CAT-45-1.000-STUBBY 1 1.375 CAT-45 2.25 4.62 5/8-18 X 5/16
CAT-45-1.250-STUBBY 1.25 1.375 CAT-45 2.25 4.62 5/8-18 X 5/16
Catalog Number D R TAPER B L S.S.
BT-50-.250-STUBBY 0.25 2.12 BT-50 2.75 6.13 #10-32 X 1/8
BT-50-.375-STUBBY 0.375 2.12 BT-50 2.75 6.13 5/16-24 X 5/32
BT-50-.500-STUBBY 0.5 2.12 BT-50 2.75 6.13 7/16-20 X 7/32
BT-50-.625-STUBBY 0.625 2.12 BT-50 2.75 6.13 1/2-20 X 1/4
BT-50-.750-STUBBY 0.75 2.12 BT-50 2.75 6.13 1/2-20 X 1/4
BT-50-.875-STUBBY 0.875 2.12 BT-50 2.75 6.13 5/8-18 X 5/16
BT-50-1.000-STUBBY 1 2.12 BT-50 2.75 6.13 5/8-18 X 5/16
BT-50-1.250-STUBBY 1.25 2.12 BT-50 2.75 6.13 5/8-18 X 5/16
BT-50-1.500-STUBBY 1.5 2.12 BT-50 2.75 6.13 3/4-16 X 3/8
Catalog Number D R TAPER B L S.S.
CAT-50-.250-STUBBY 0.25 1.375 CAT-50 2.75 5.38 #10-32 X 1/8
CAT-50-.375-STUBBY 0.375 1.375 CAT-50 2.75 5.38 5/16-24 X 5/32
CAT-50-.500-STUBBY 0.5 1.375 CAT-50 2.75 5.38 7/16-20 X 7/32
CAT-50-.625-STUBBY 0.625 1.375 CAT-50 2.75 5.38 1/2-20 X 1/4
CAT-50-.750-STUBBY 0.75 1.375 CAT-50 2.75 5.38 1/2-20 X 1/4
CAT-50-.875-STUBBY 0.875 1.375 CAT-50 2.75 5.38 5/8-18 X 5/16
CAT-50-1.000-STUBBY 1 1.375 CAT-50 2.75 5.38 5/8-18 X 5/16
CAT-50-1.250-STUBBY 1.25 1.375 CAT-50 2.75 5.38 5/8-18 X 5/16
CAT-50-1.500-STUBBY 1.5 1.375 CAT-50 2.75 5.38 3/4-16 X 3/8
